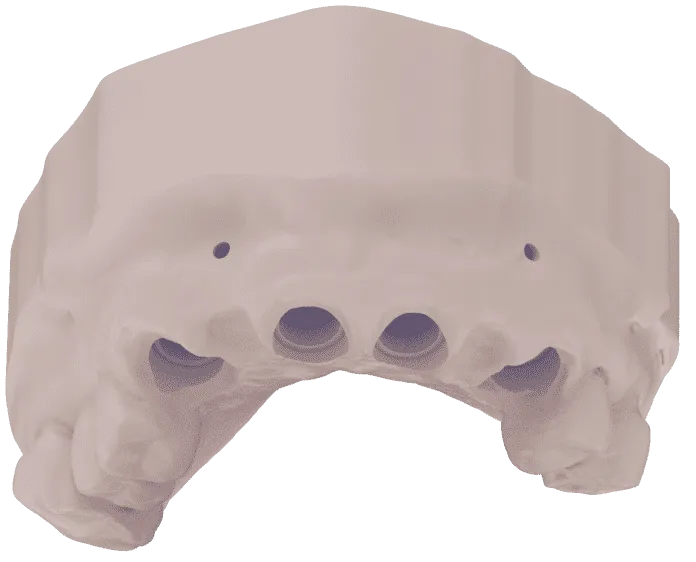

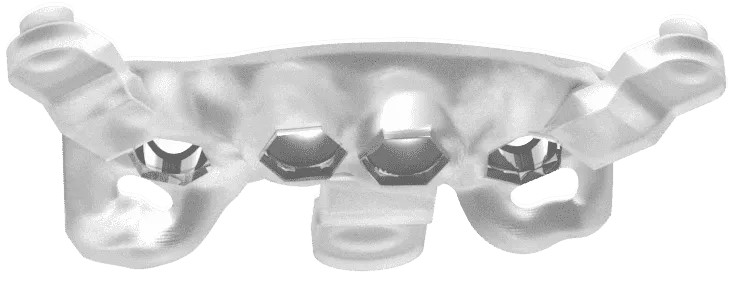

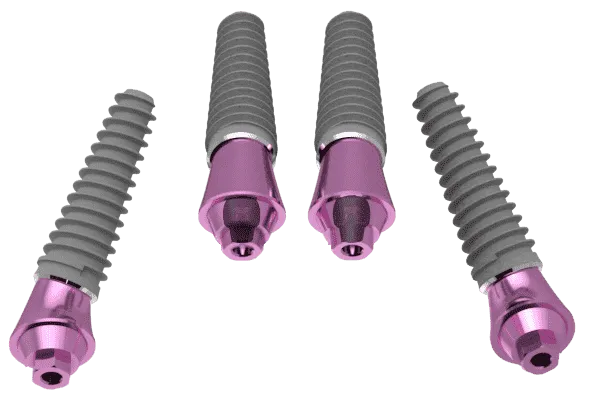

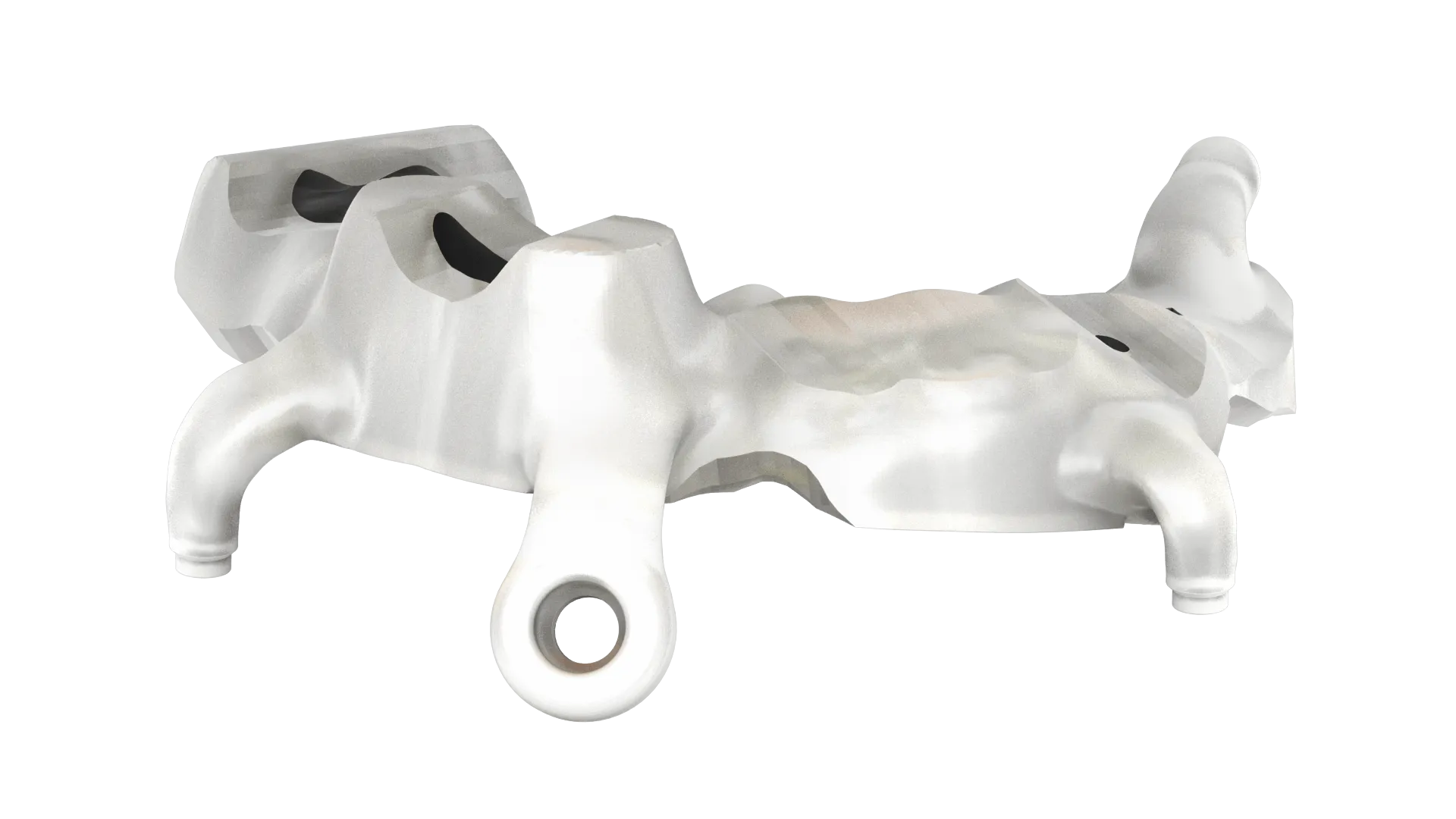

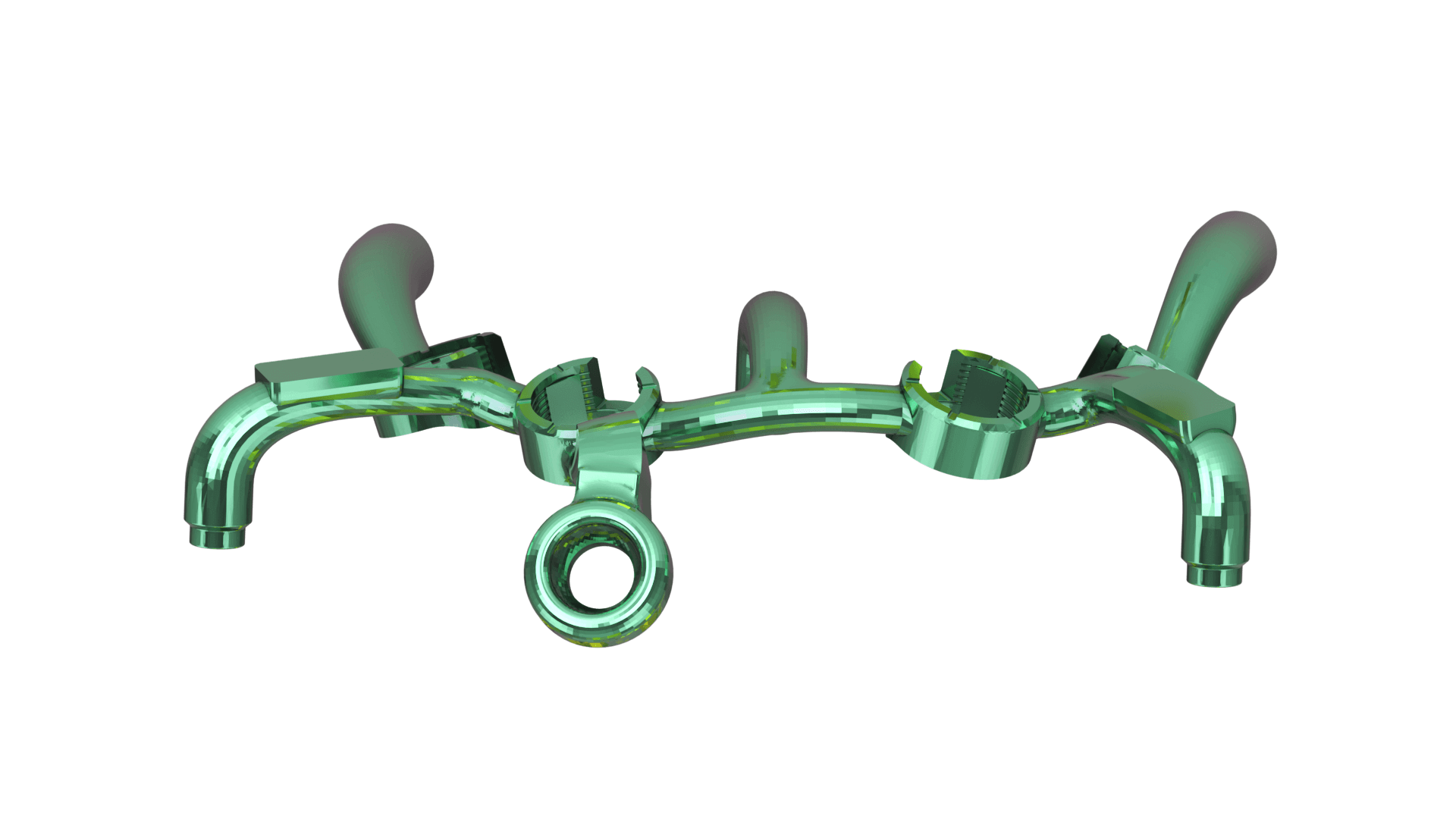

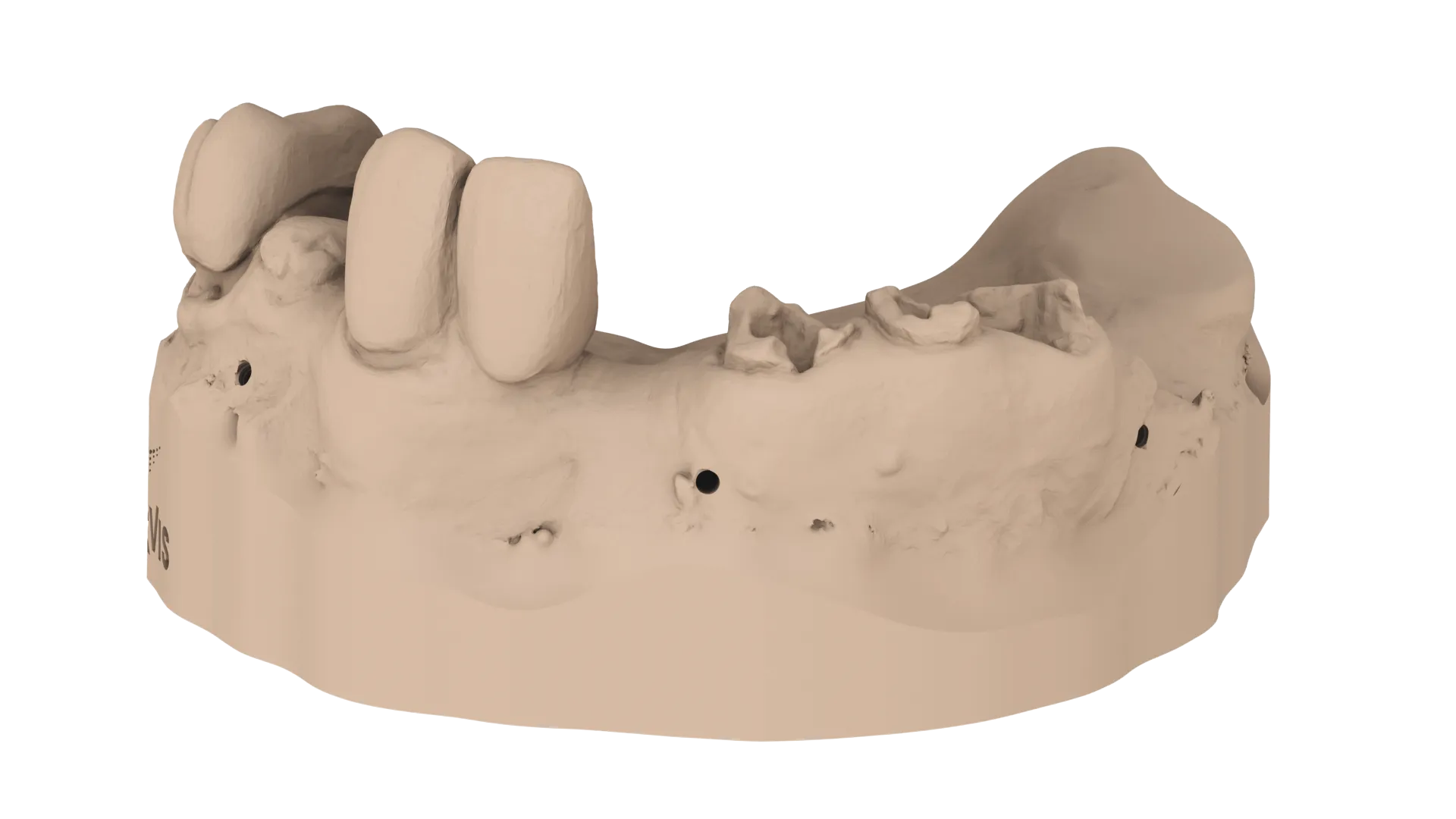

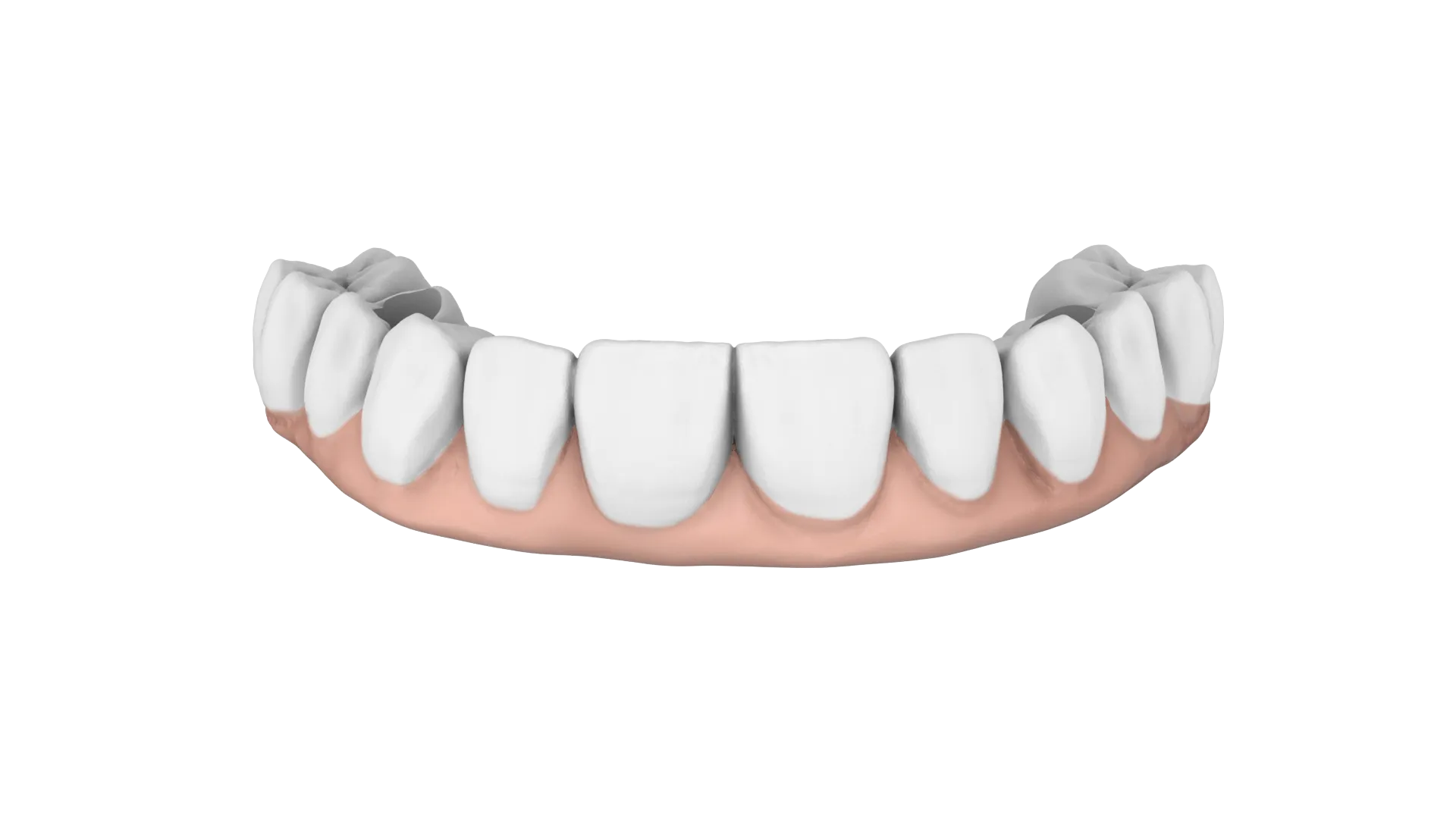

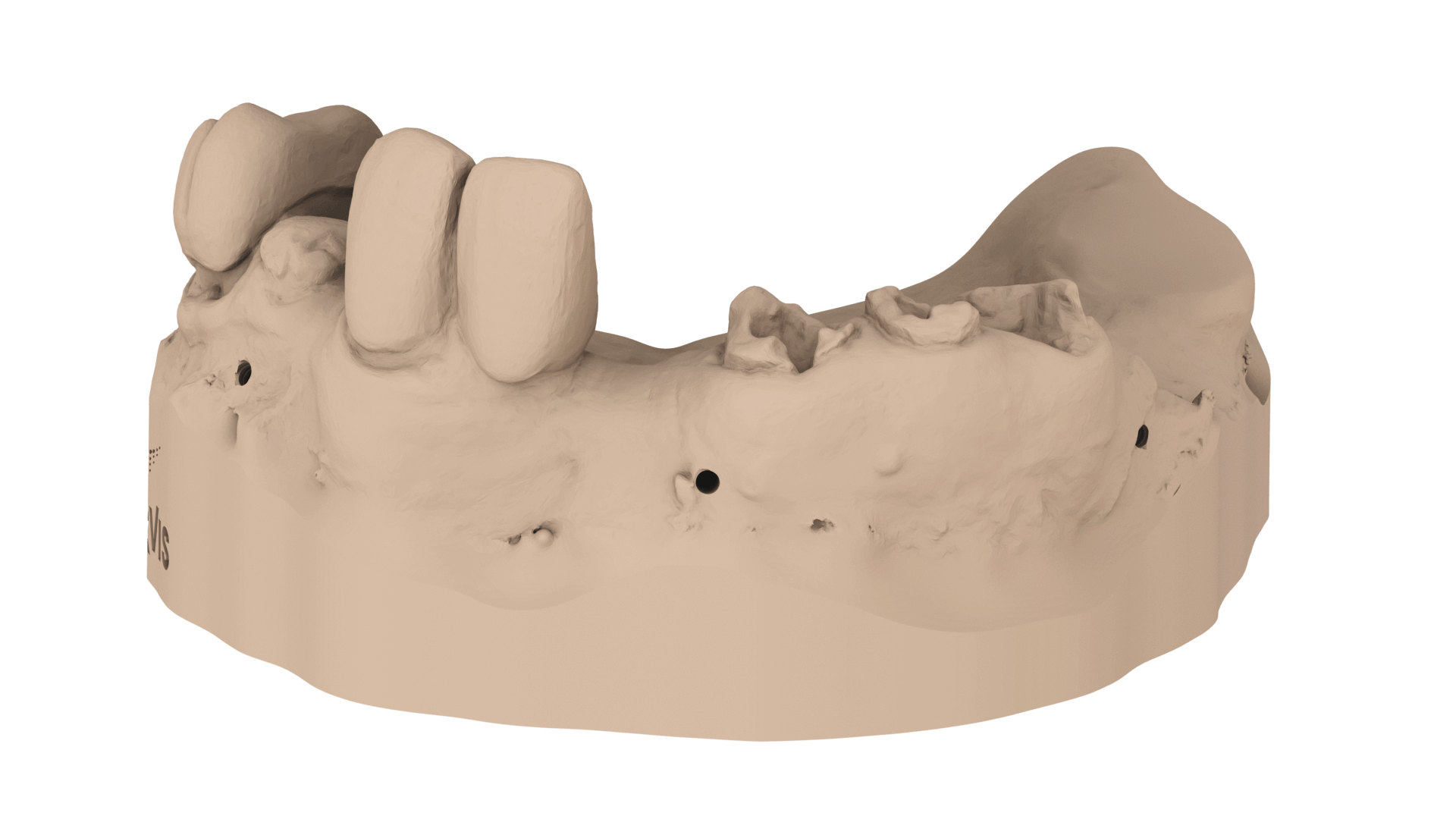

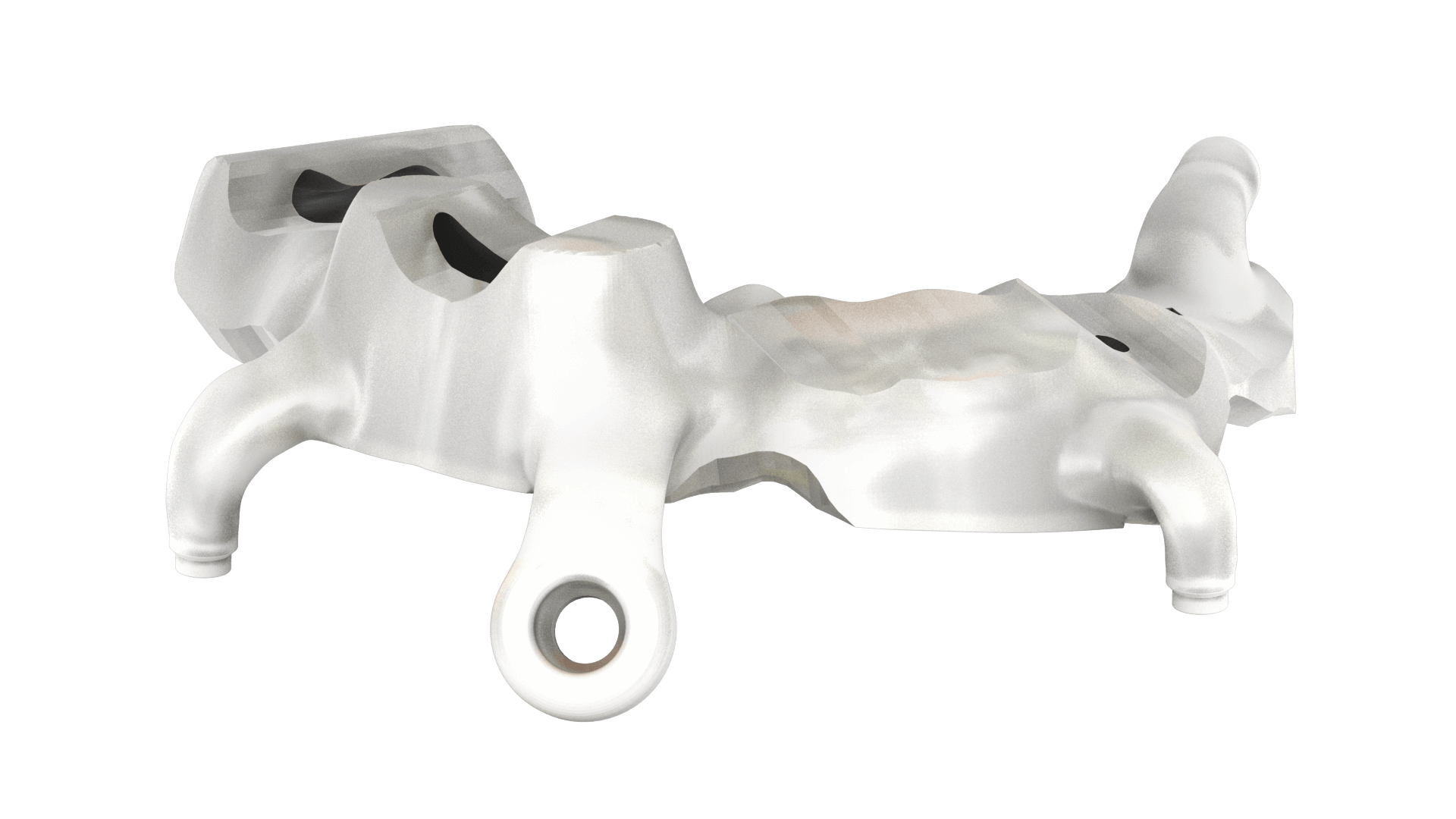

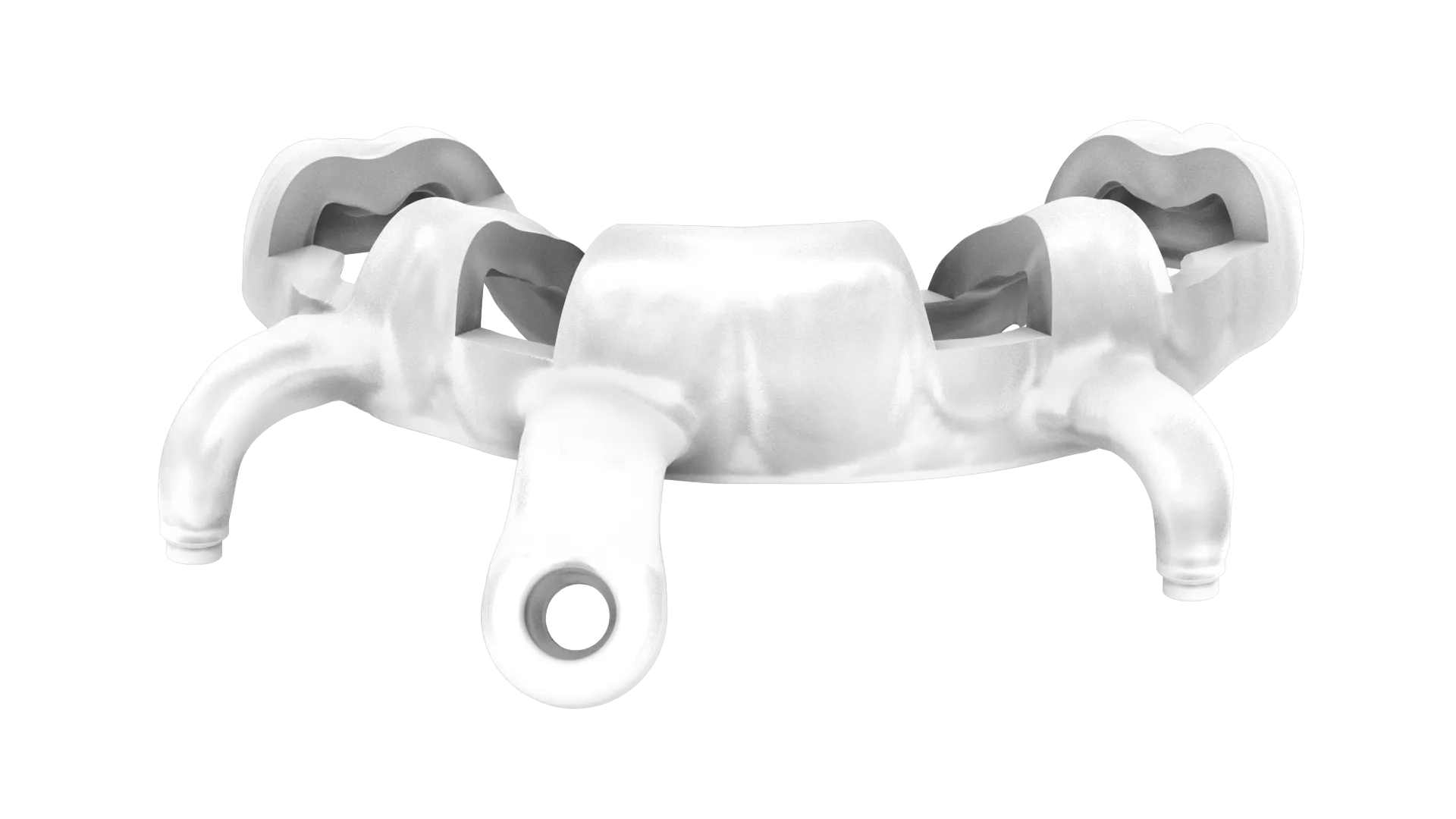

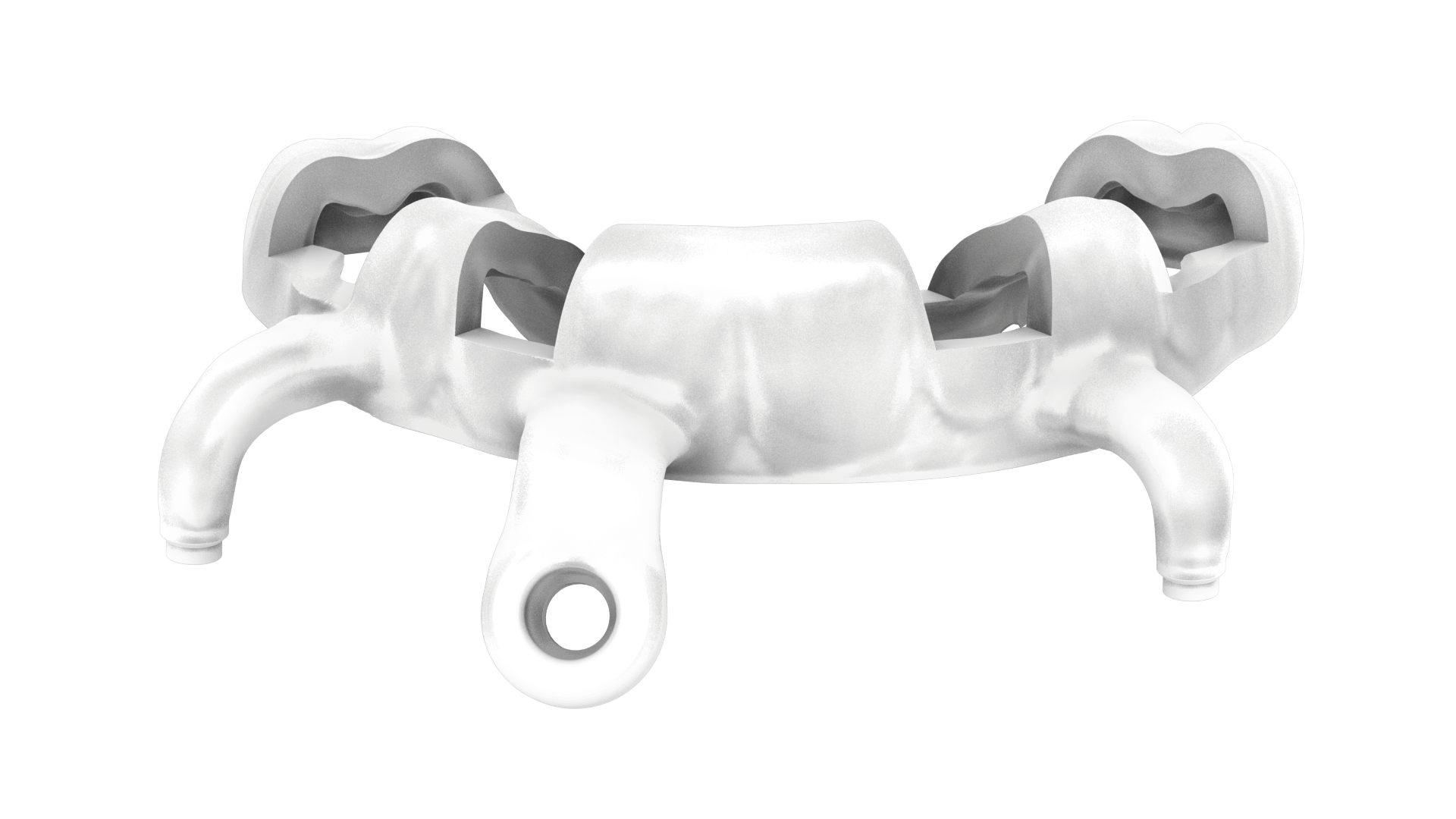

Take a closer look to our digital workflow
Get in Touch to Explore Our Digital Workflow Solutions
Take a closer look to our digital workflow

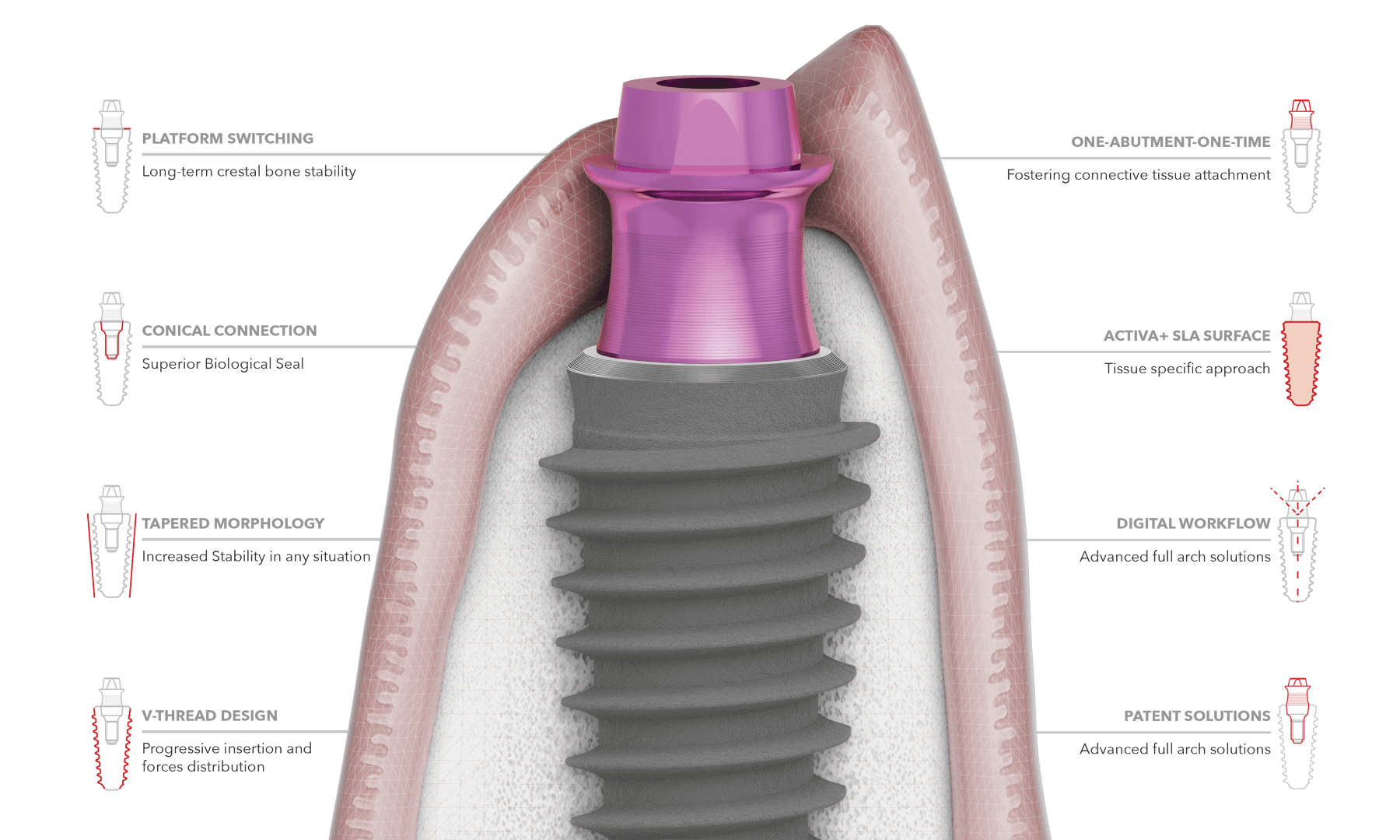

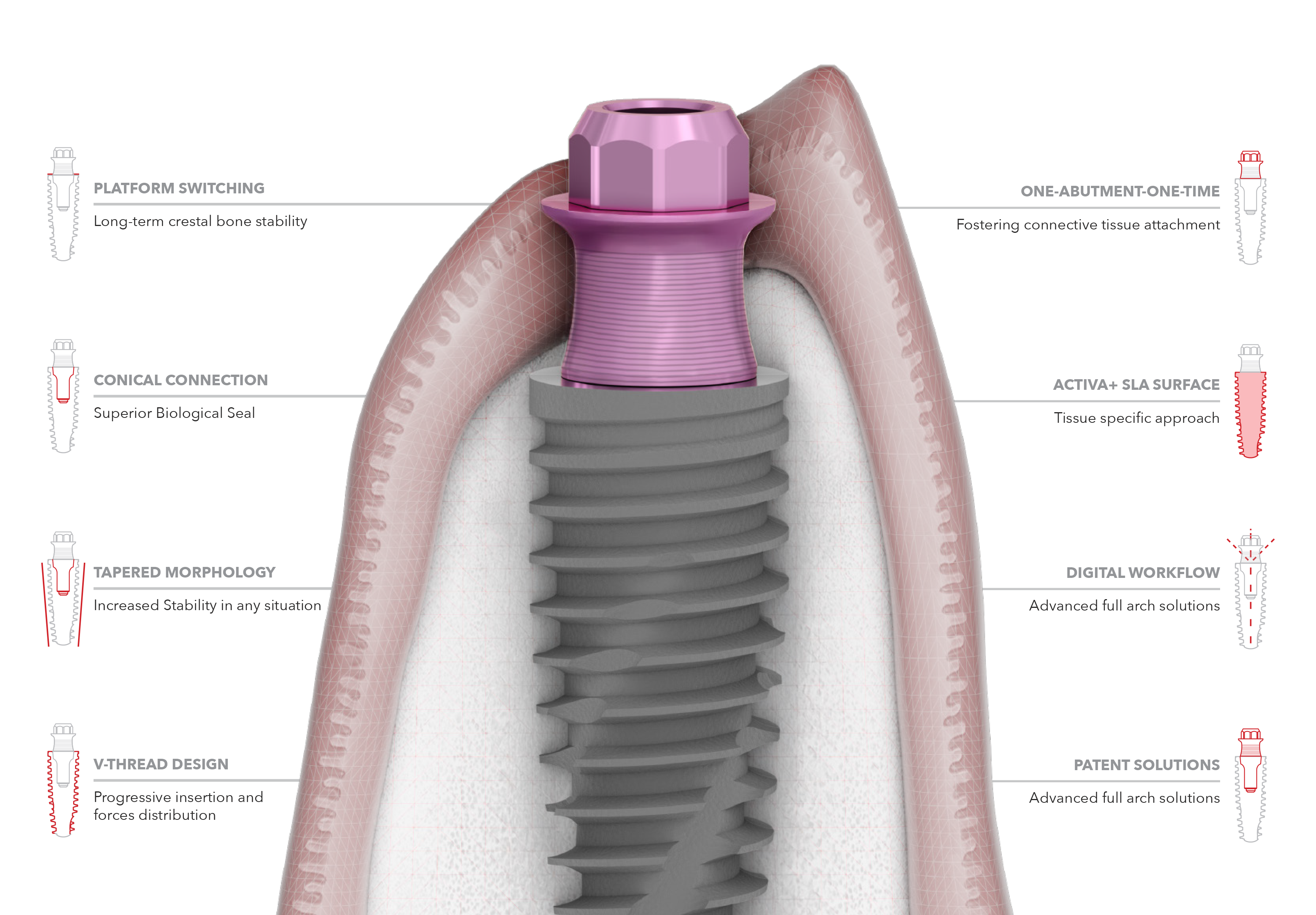

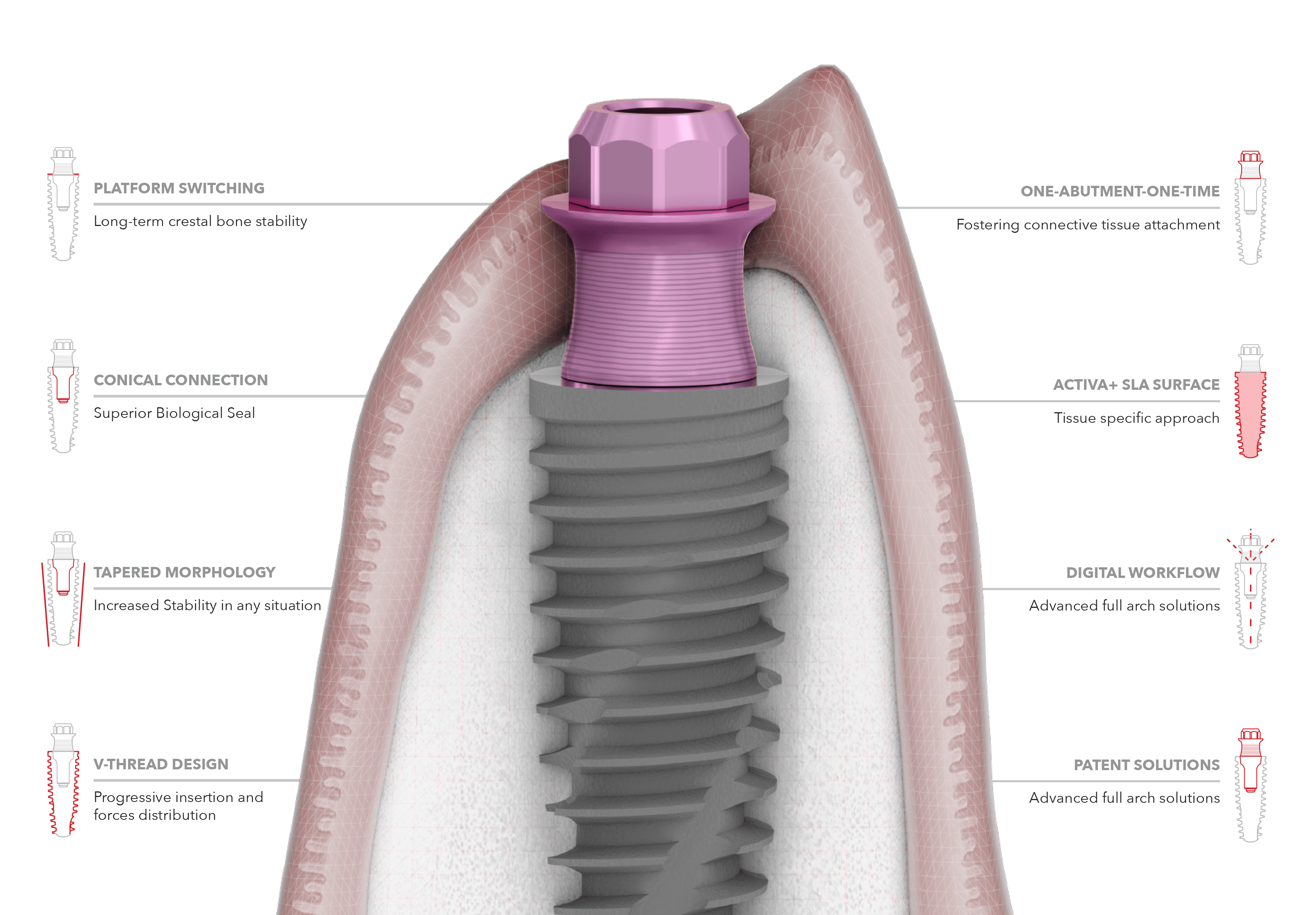

Why Inserta is the simplest
yet most advanced implant system
Enhanced soft tissue stability. Superior aesthetic results. Higher Bone protection.

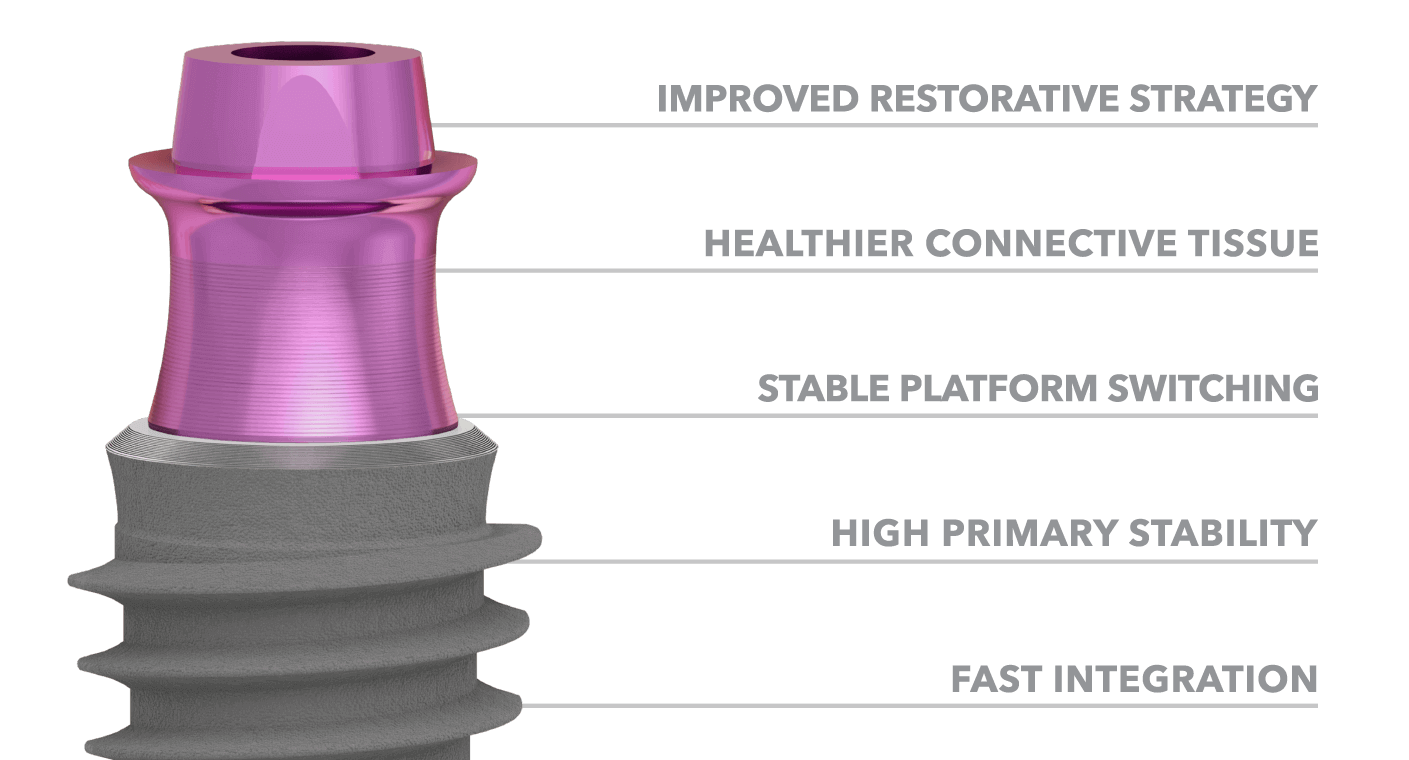

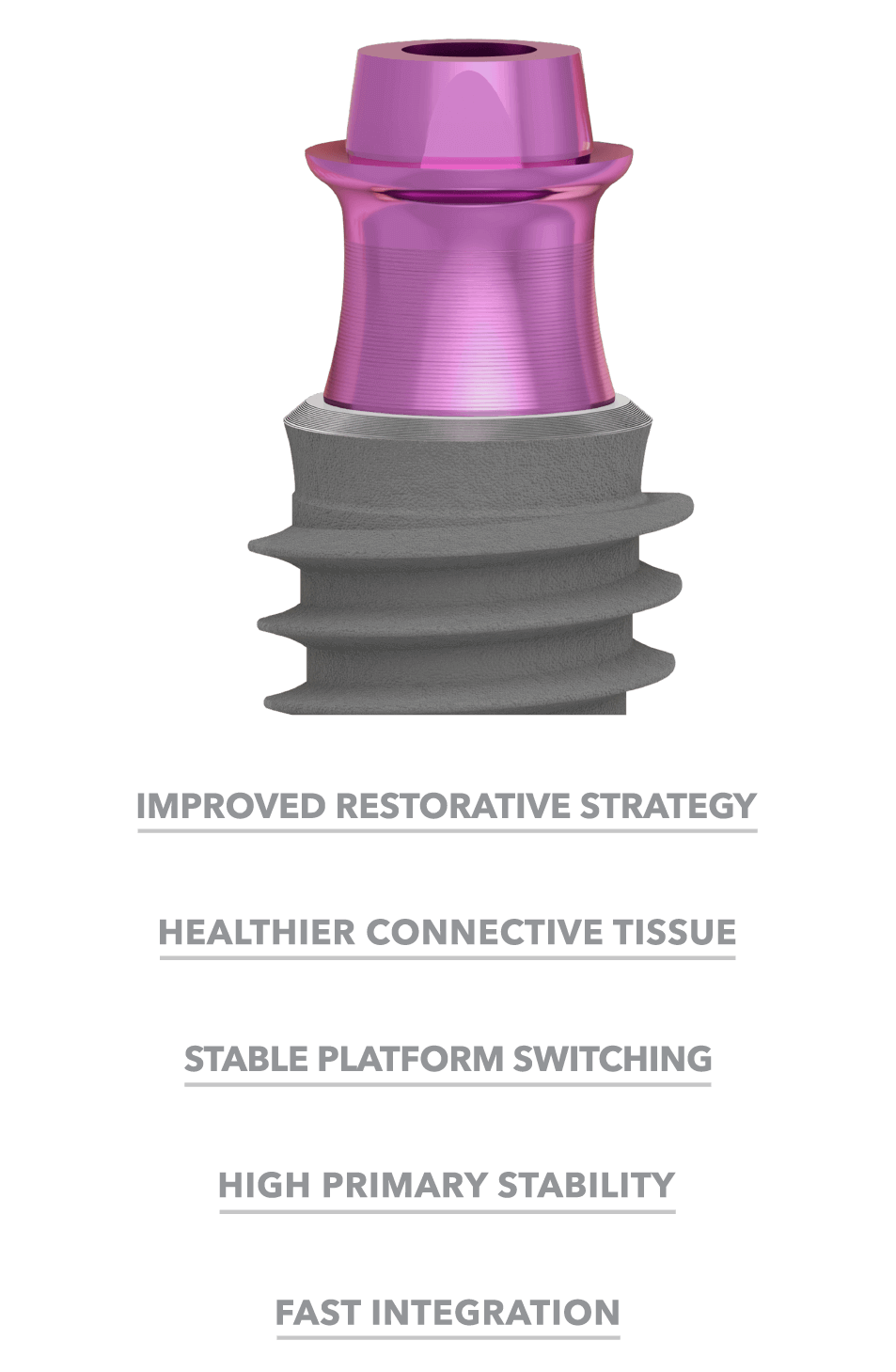

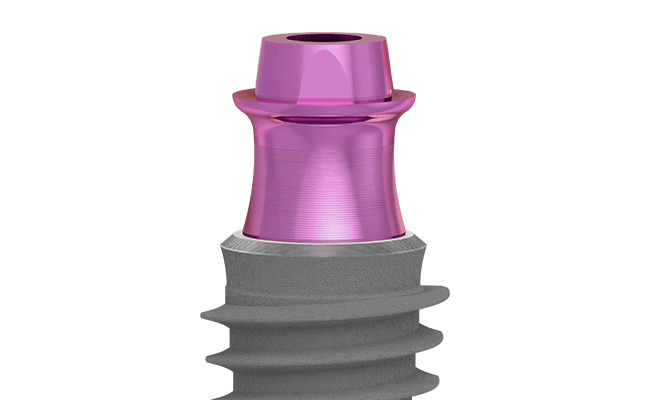

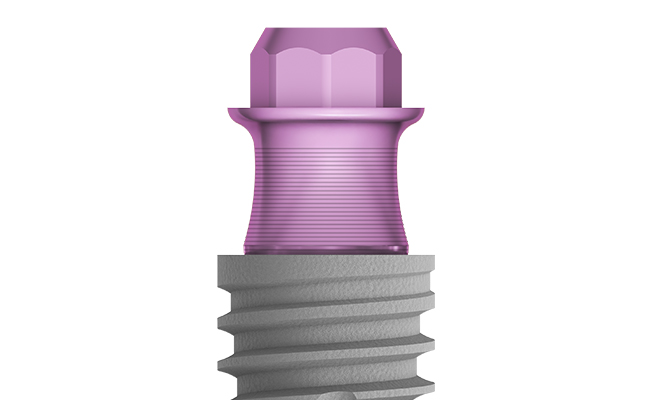

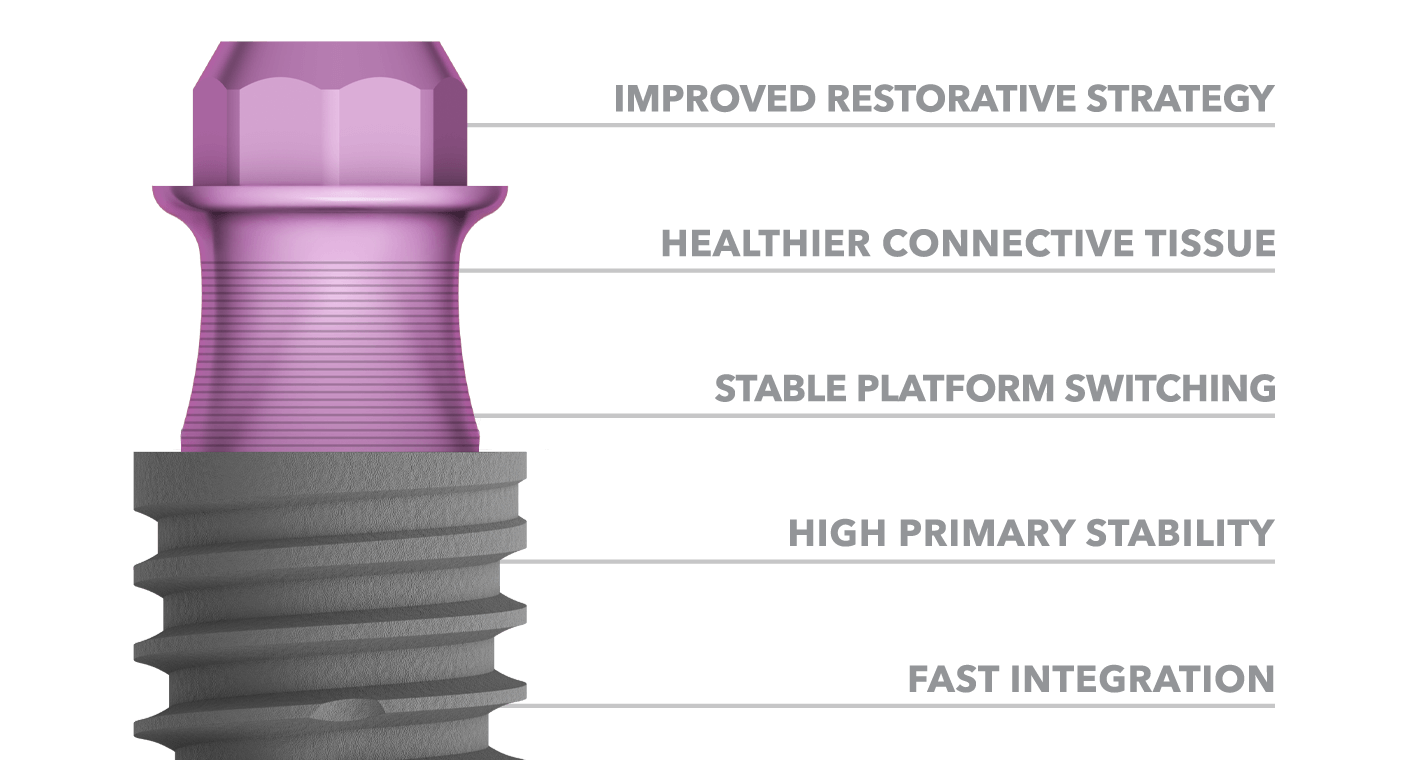

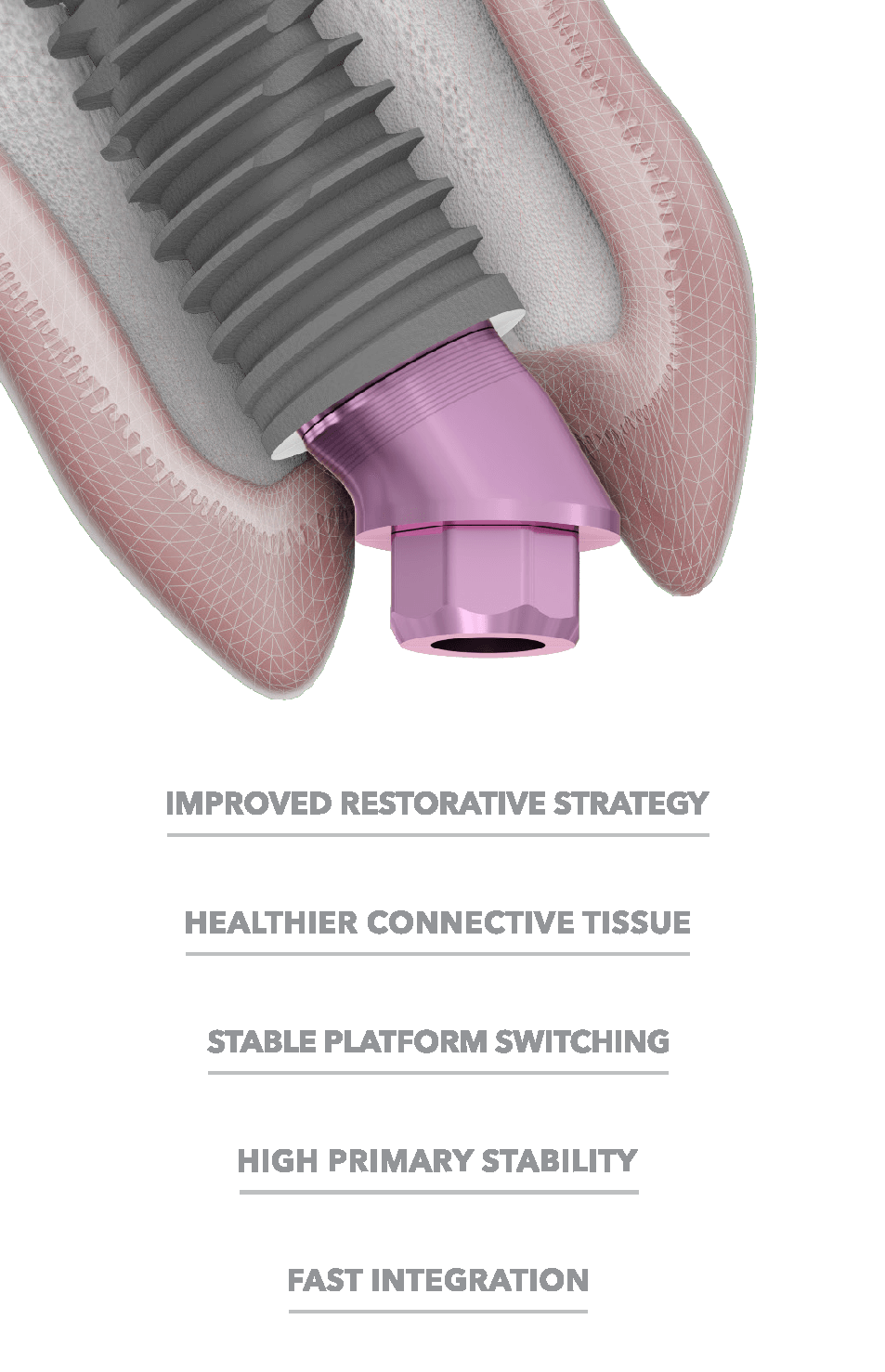

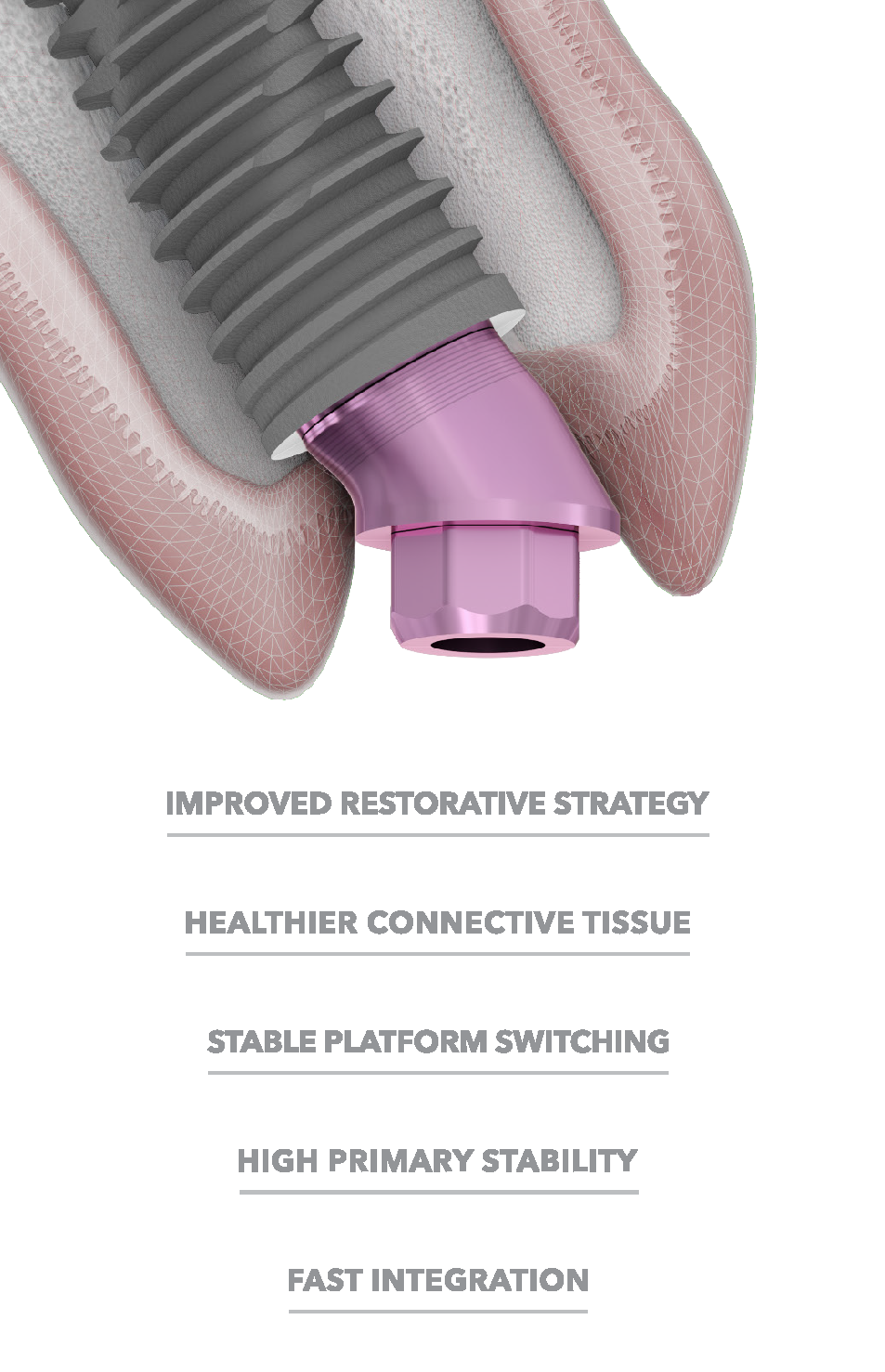

One-abutment-one-time. Soft tissue chamber.
It has been introduced as a reduced invasive prosthetic protocol to minimize soft and hard tissue trauma.
This therapy is based on delivering the final prosthetic abutment right after an immediate implantation procedure, which will never be unscrewed again.
The protocol aims to protect hard and soft tissues by minimizing the number of prosthetic component replacement events, as these frequent abutment exchanges disrupt the surrounding peri-implant mucosal barrier, causing microtrauma in this area and marginal bone loss.
Increased soft tissue volume and natural aesthetics.

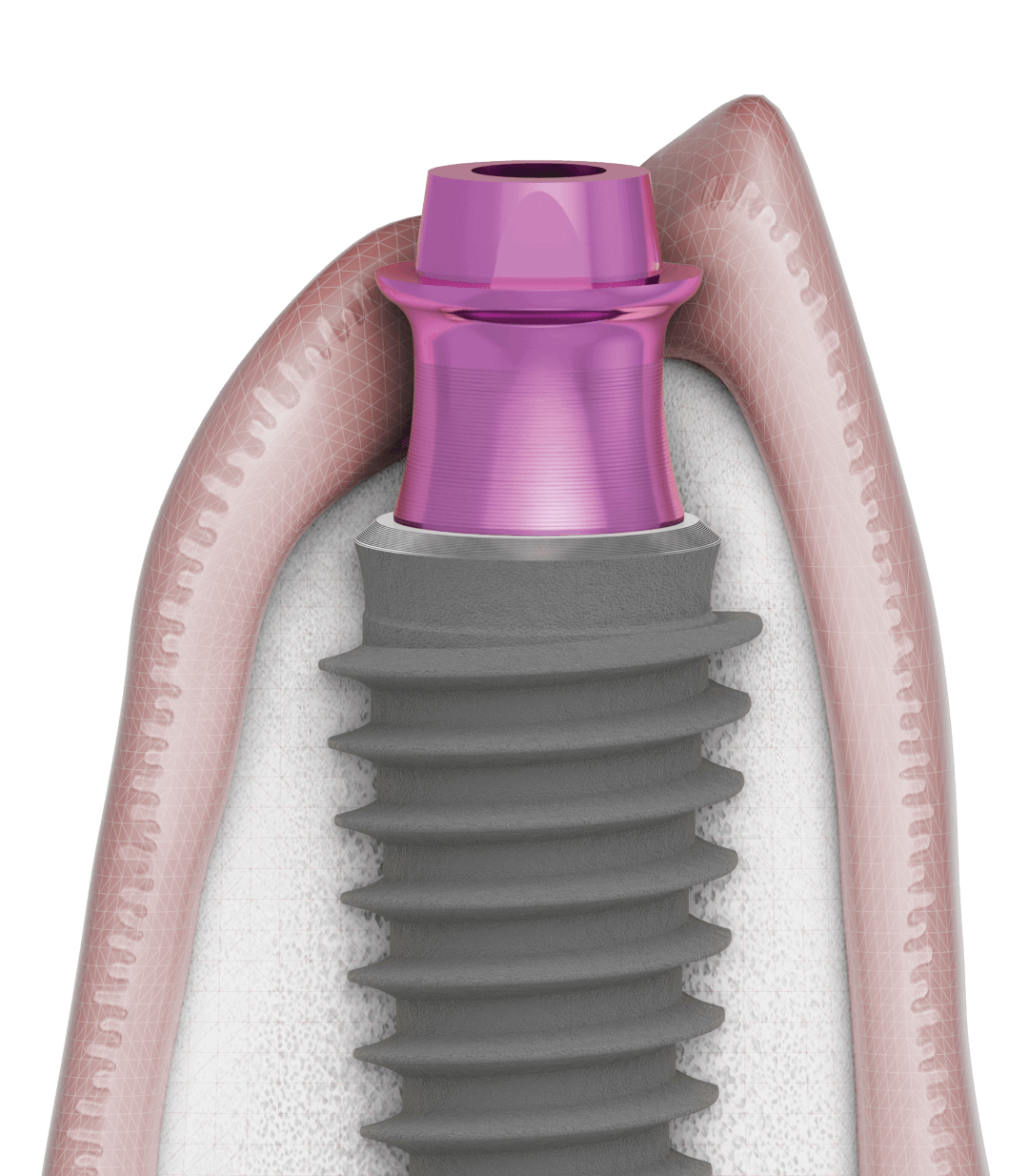

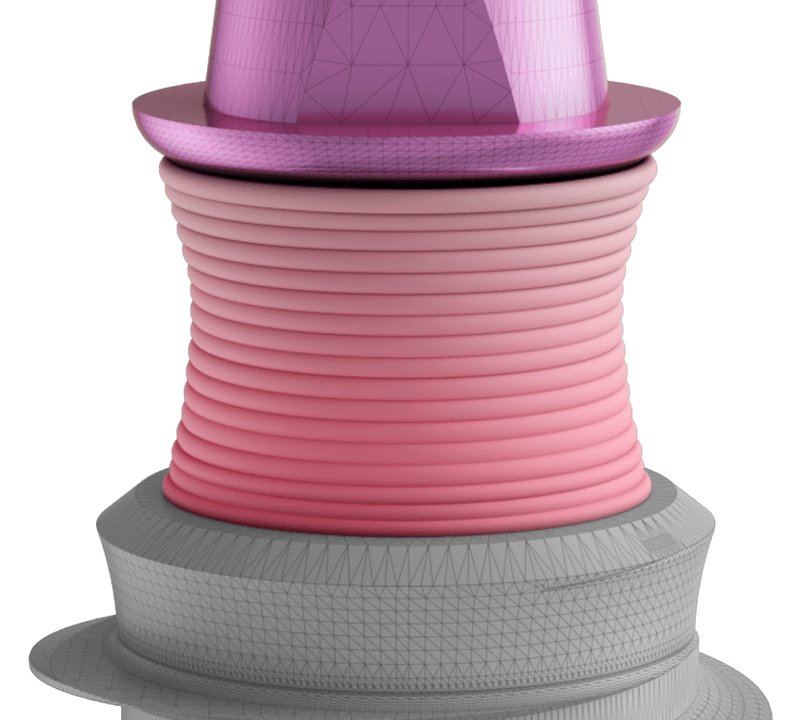

This three-dimensional chamber is created between the horizontal offset on the implant and the outer design of the abutment. It allows for an increased connective soft tissue contact zone both in height and volume, which integrates with the transmucosal part of the implant, with the effect of sealing off and protecting the marginal bone.

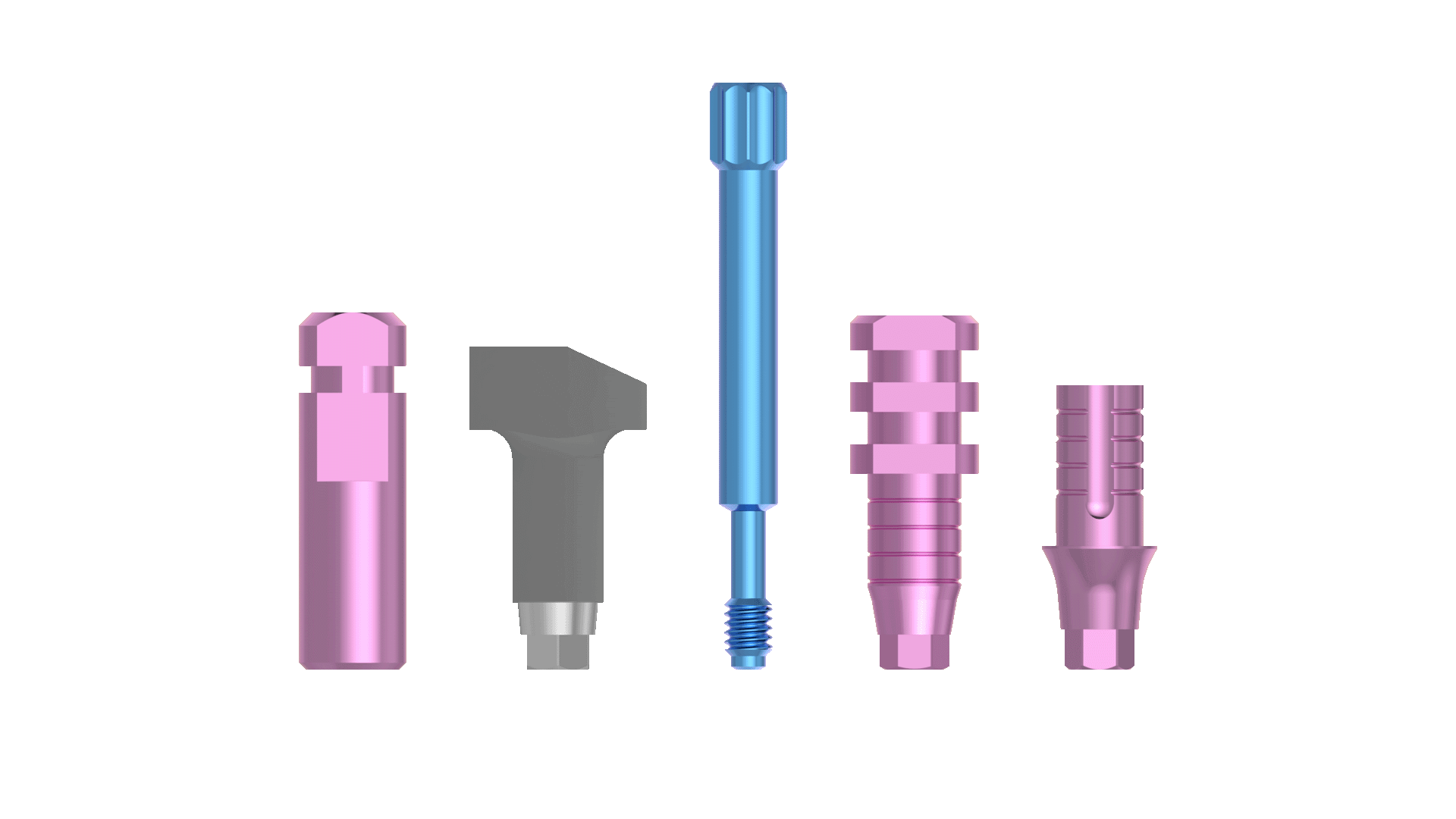

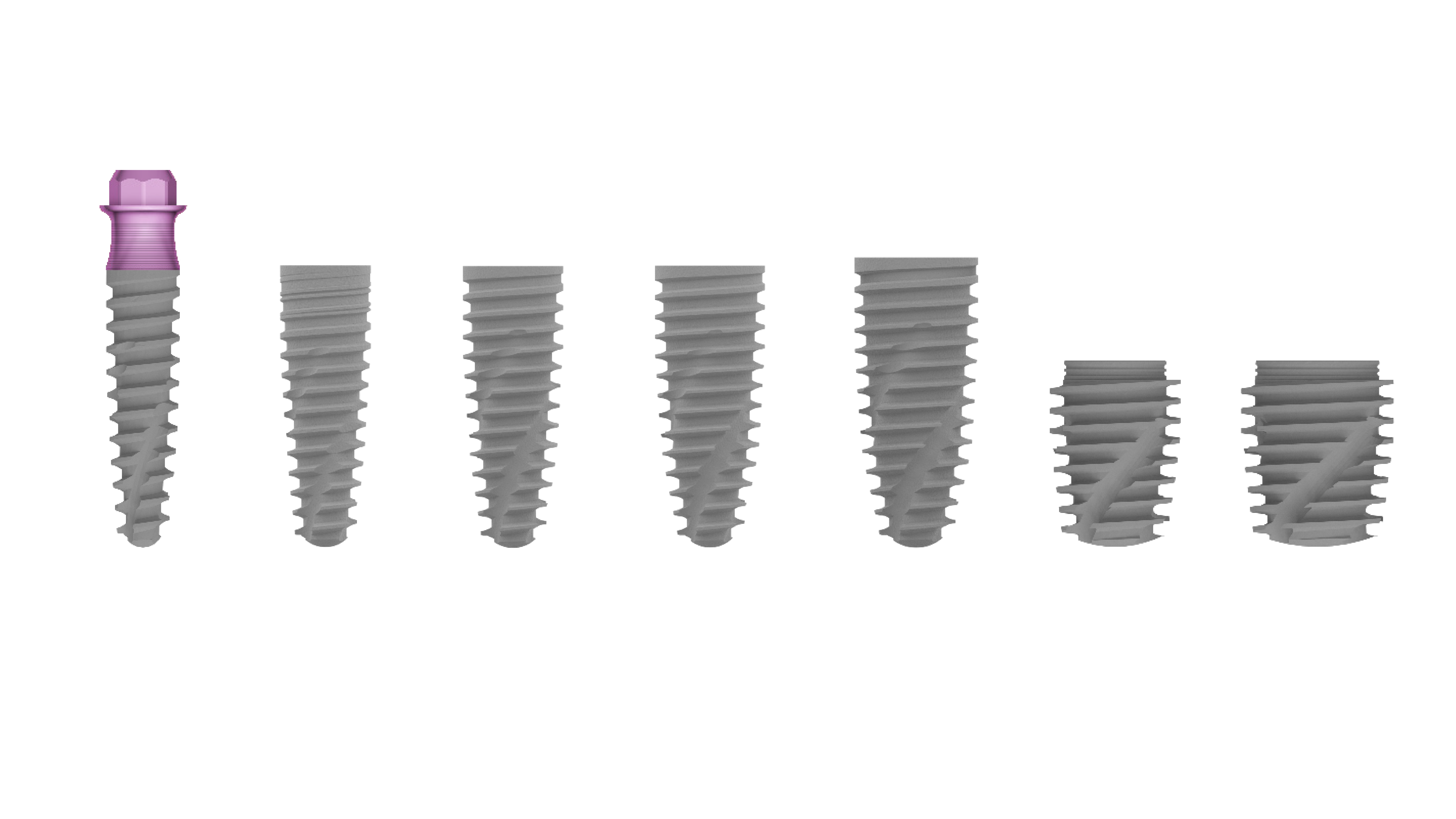

All P-3 implants have the same conical connection and a unique interface design providing six-position indexing

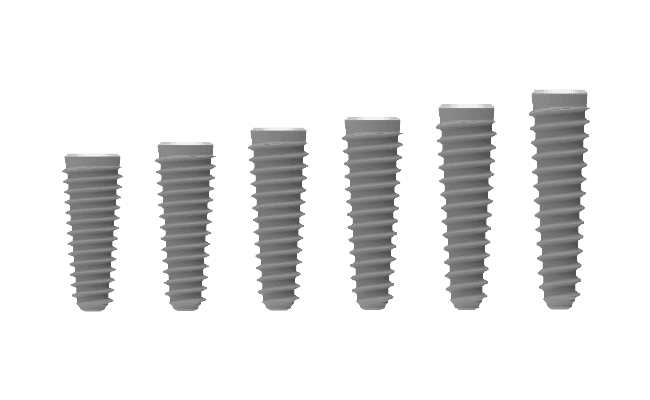

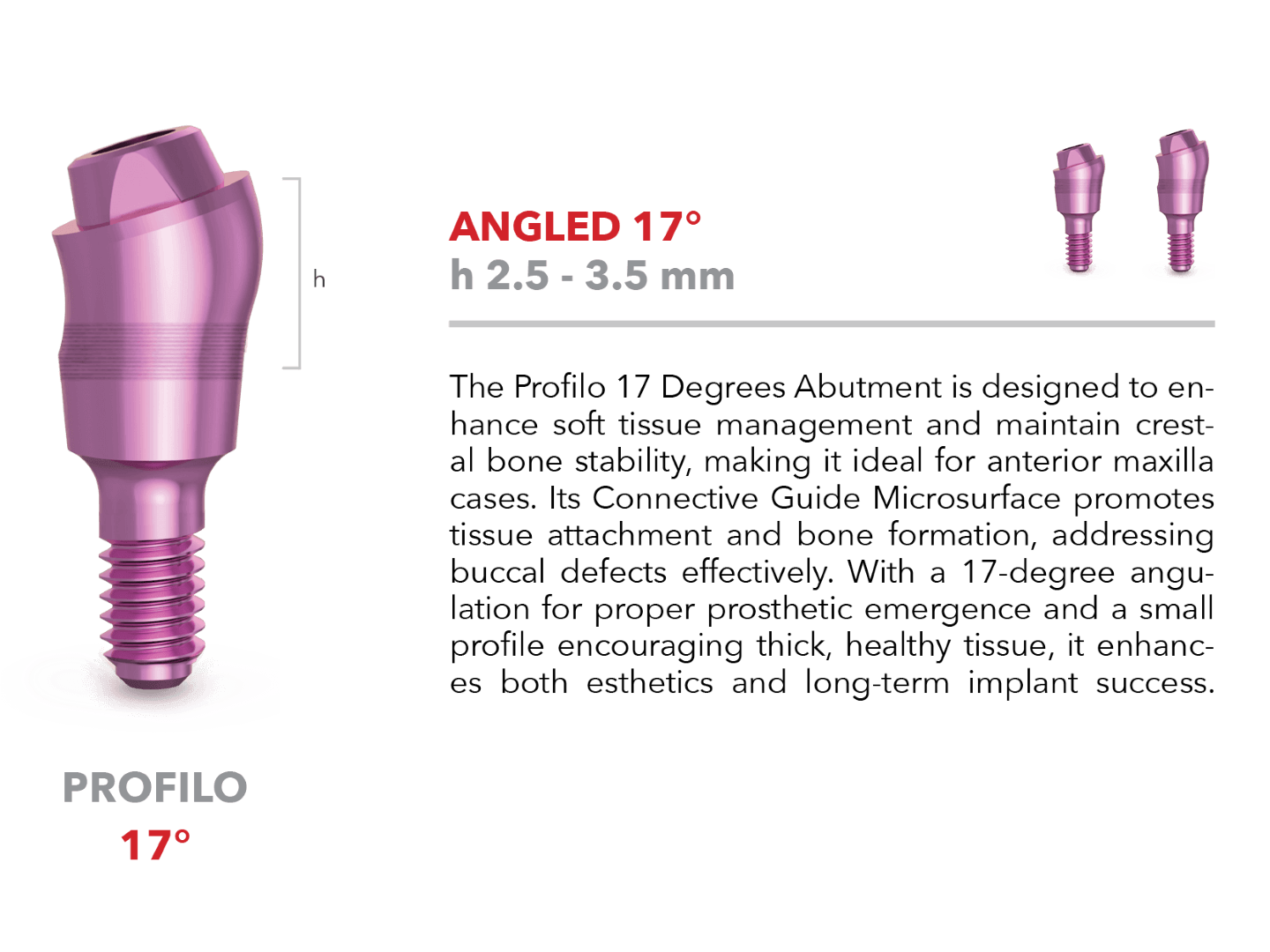

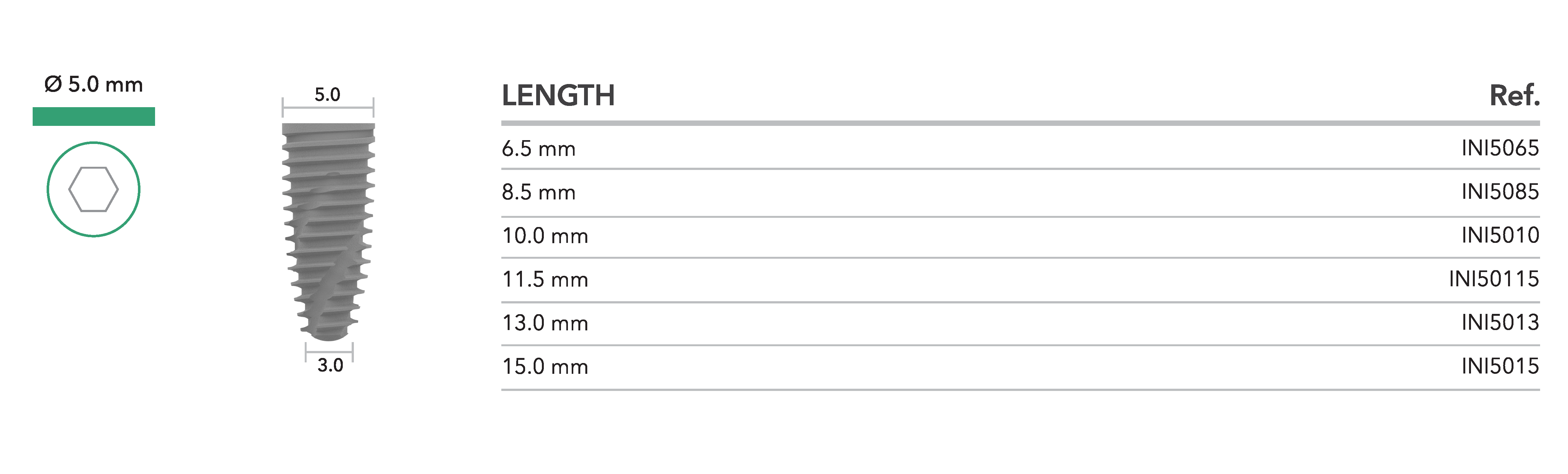

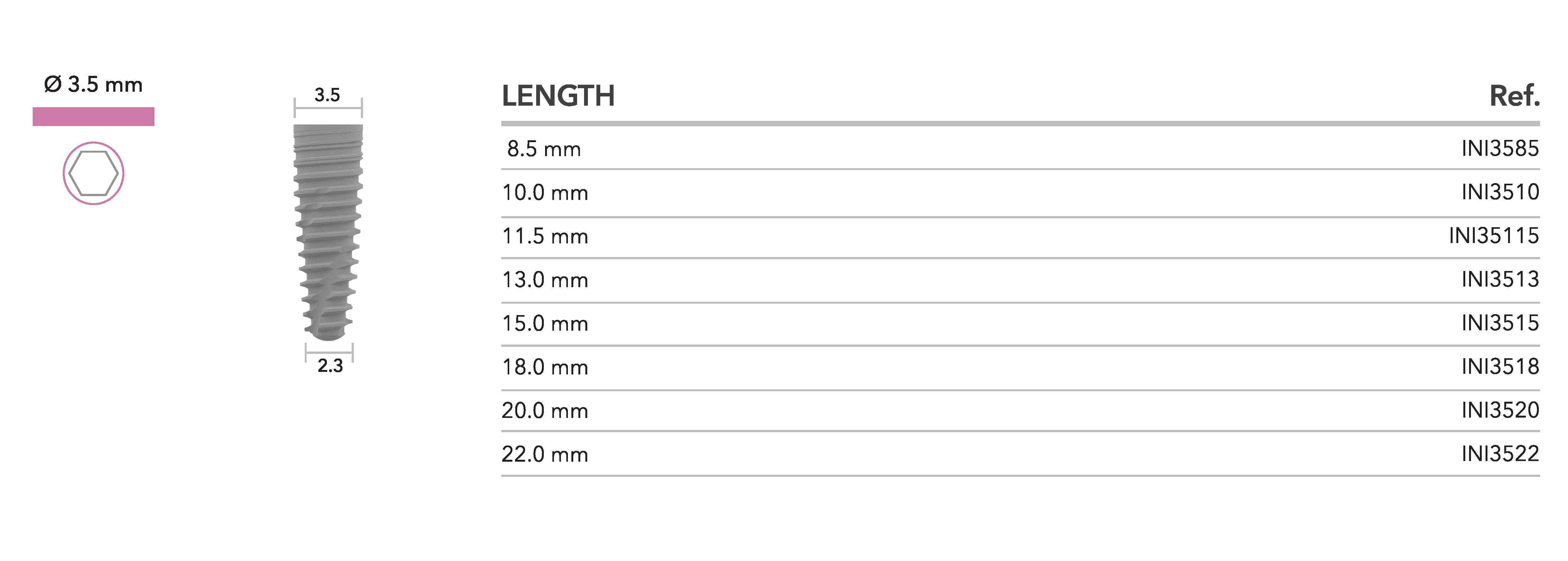

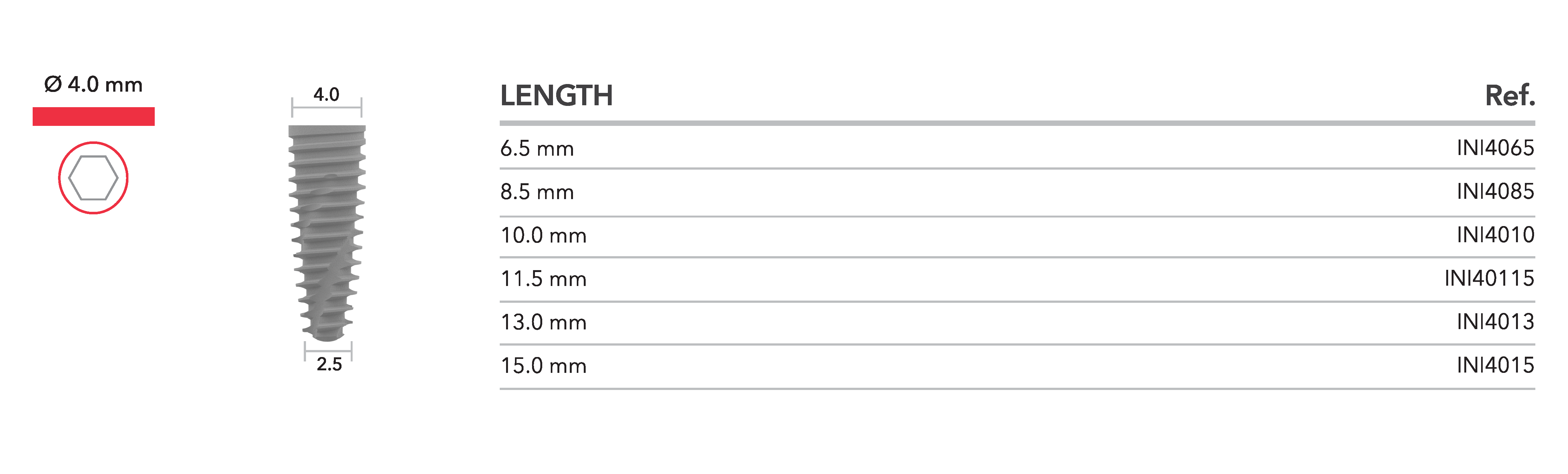

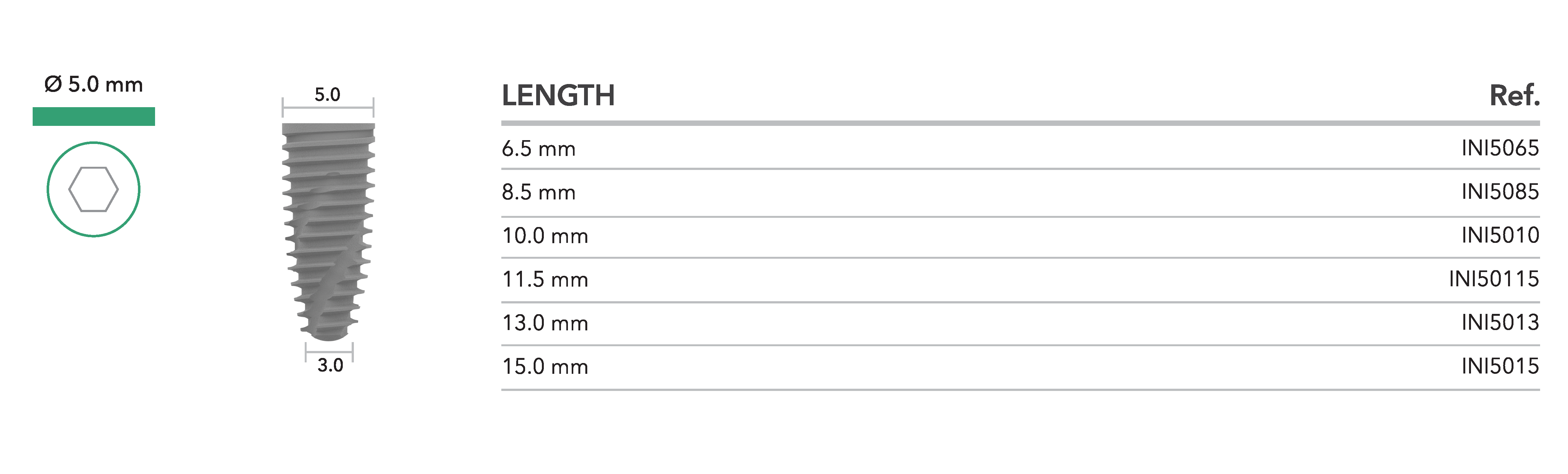

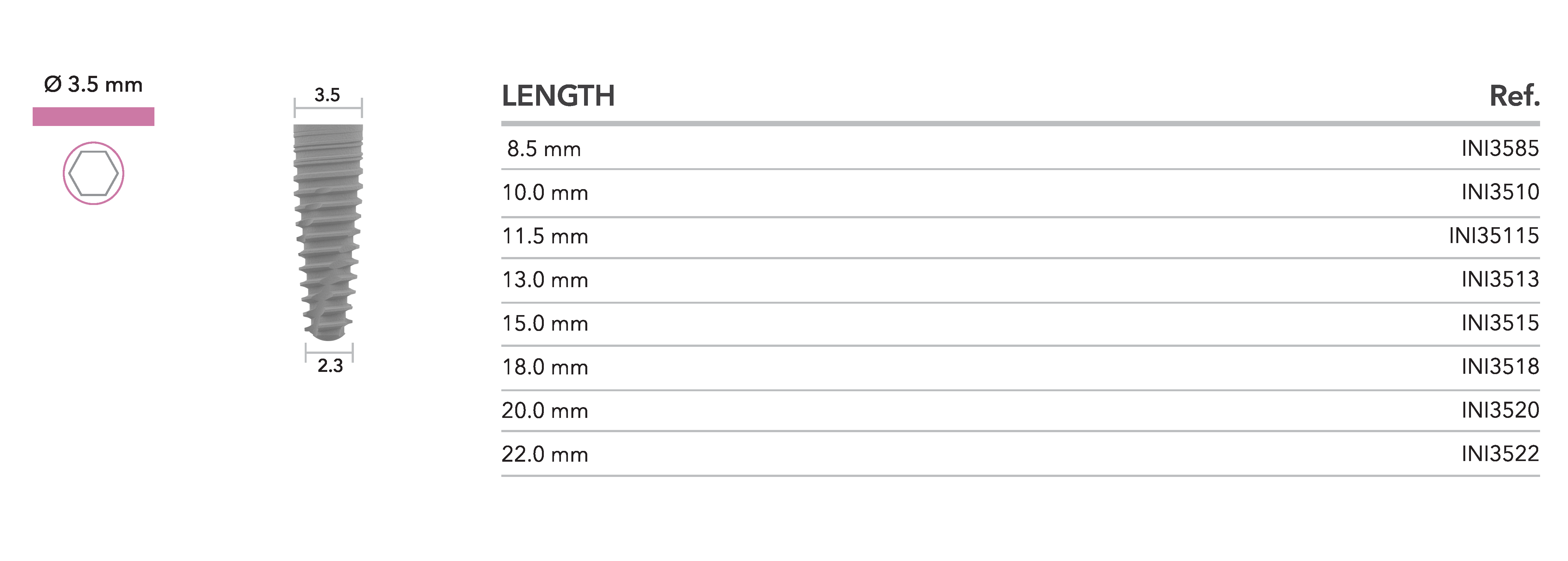

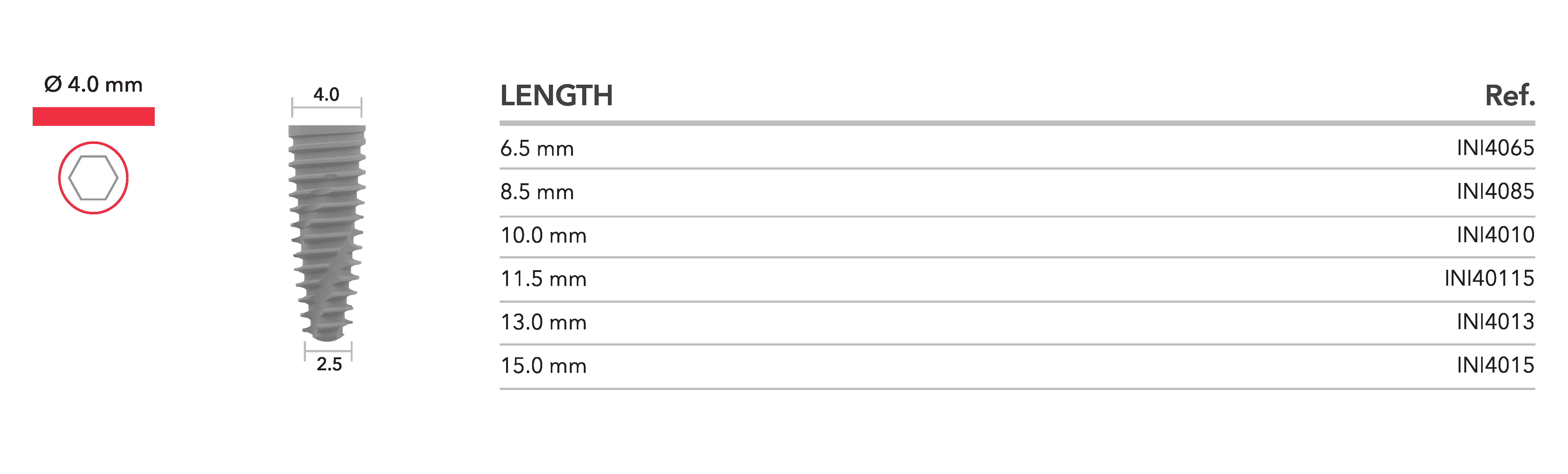

Comprehensive options from 6.5 to 22 mm height

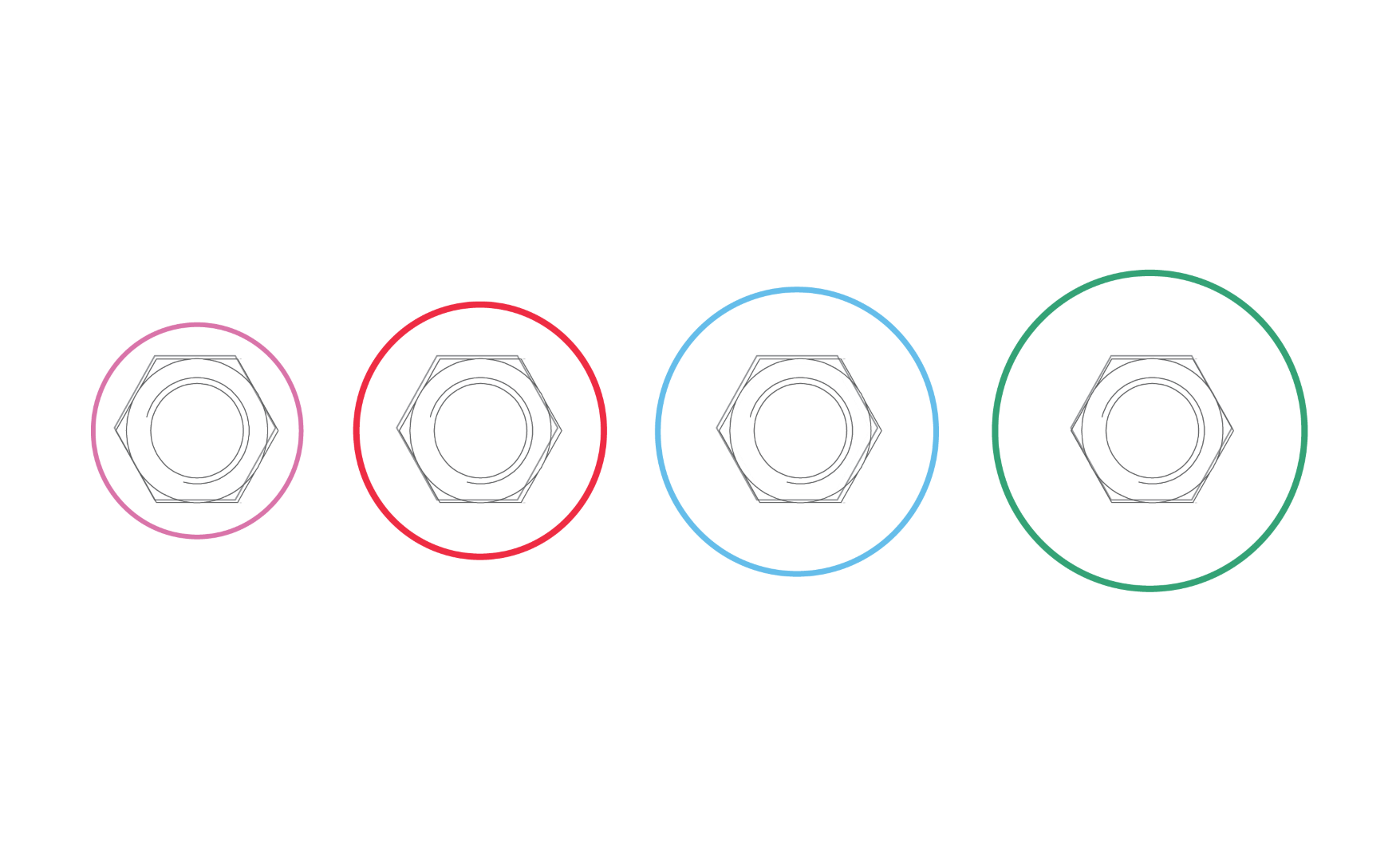

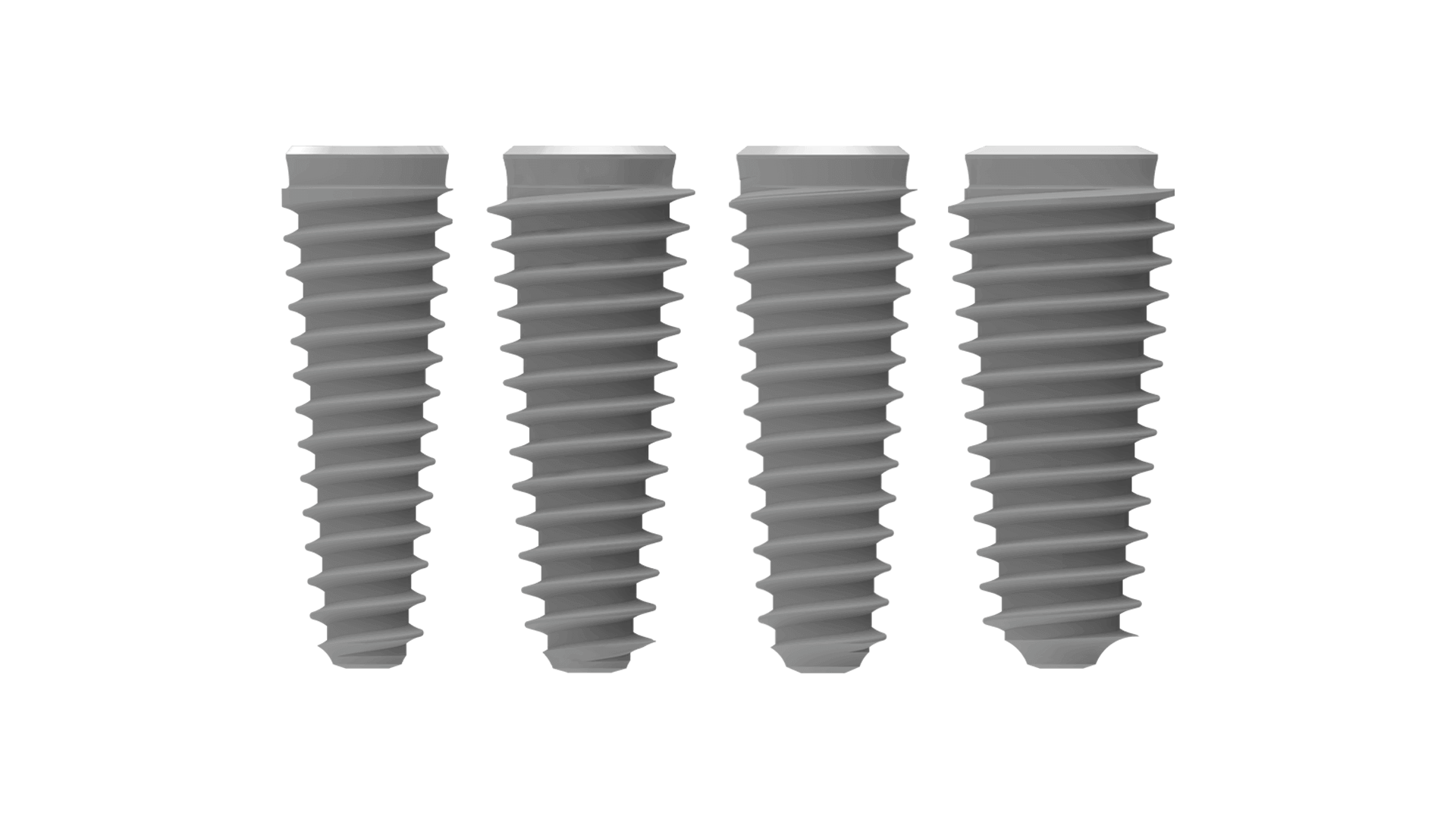

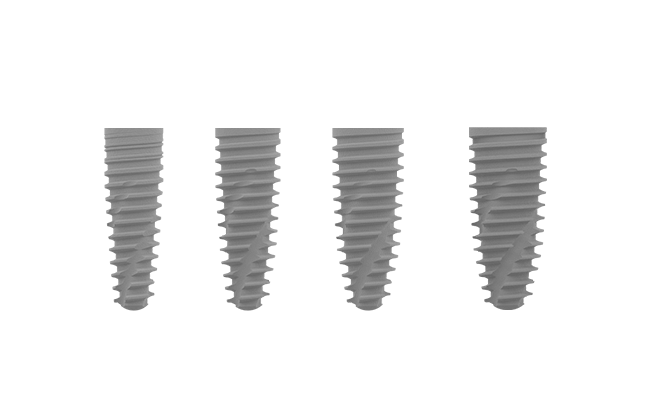

4 different diameters. One implant connection.
All P-3 implants have the same conical connection
A unique interface design providing six-position indexing

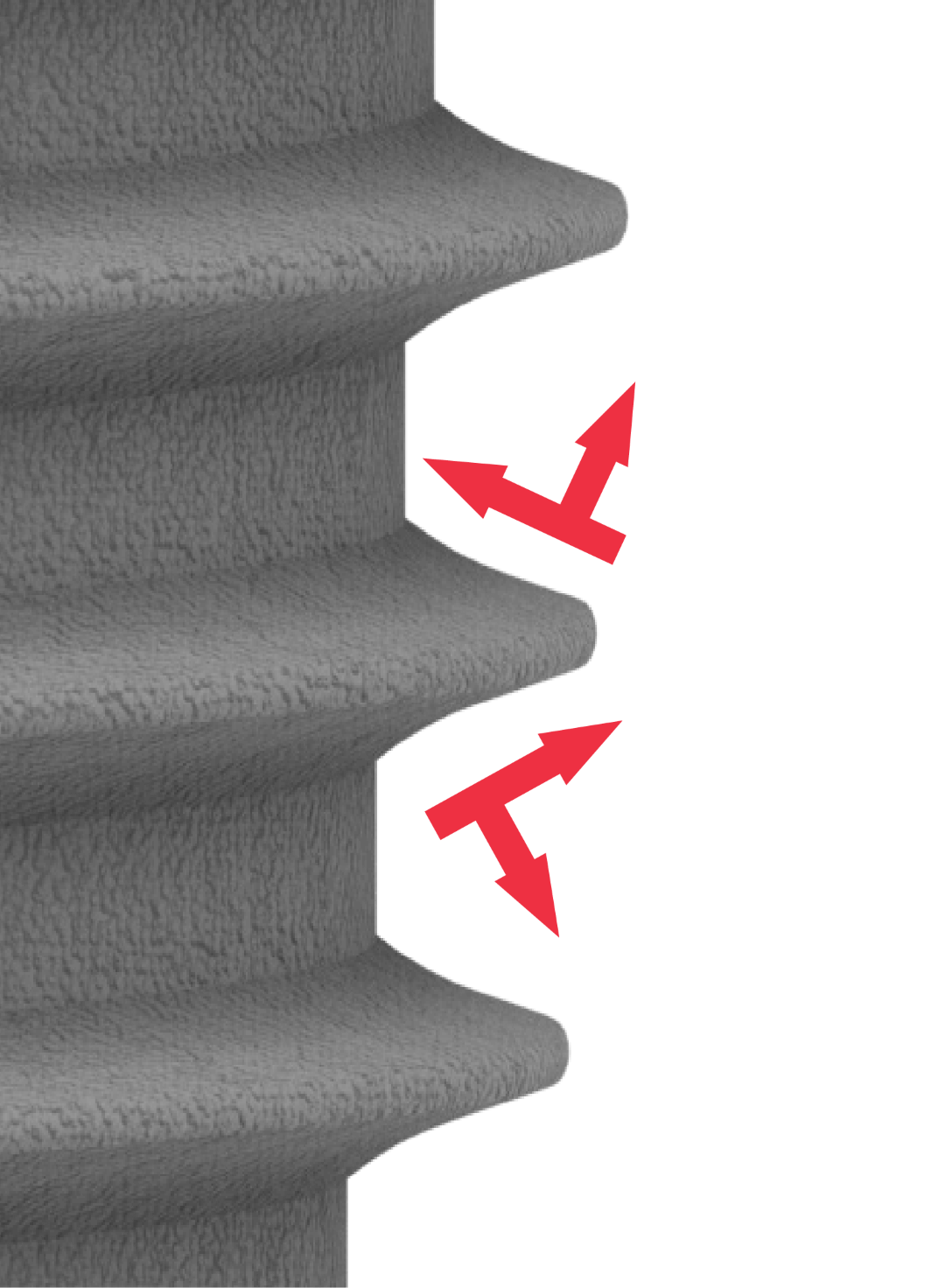

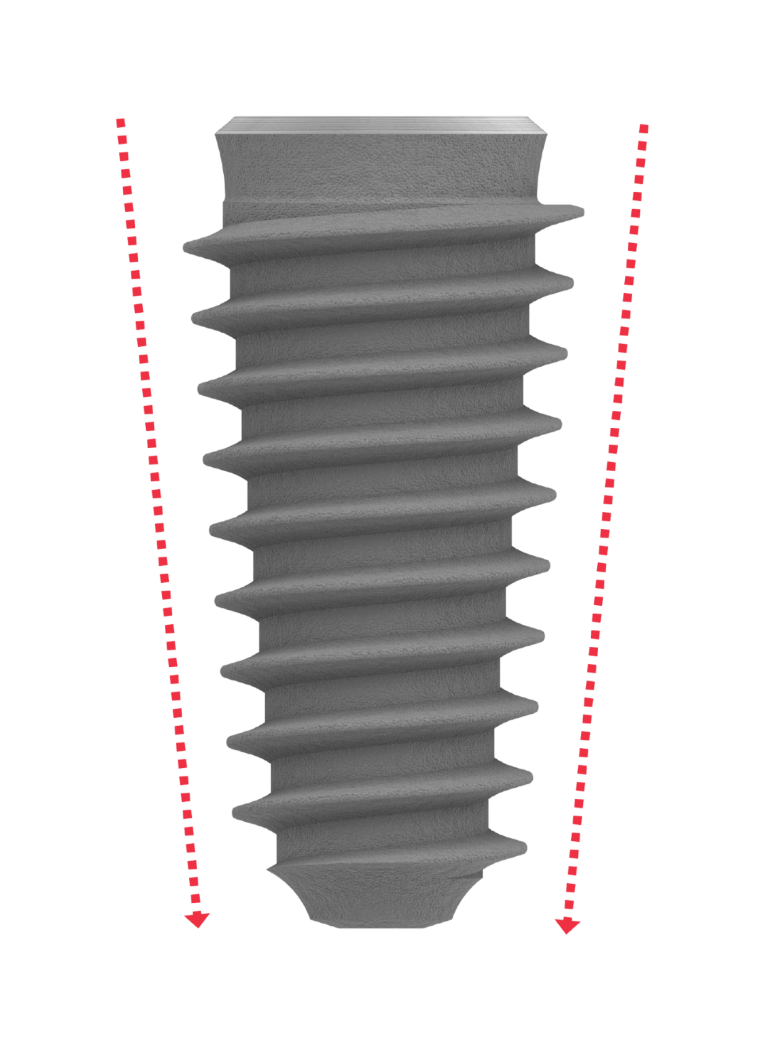

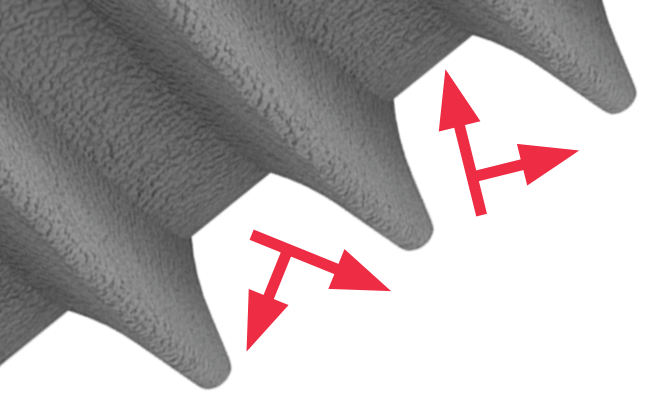

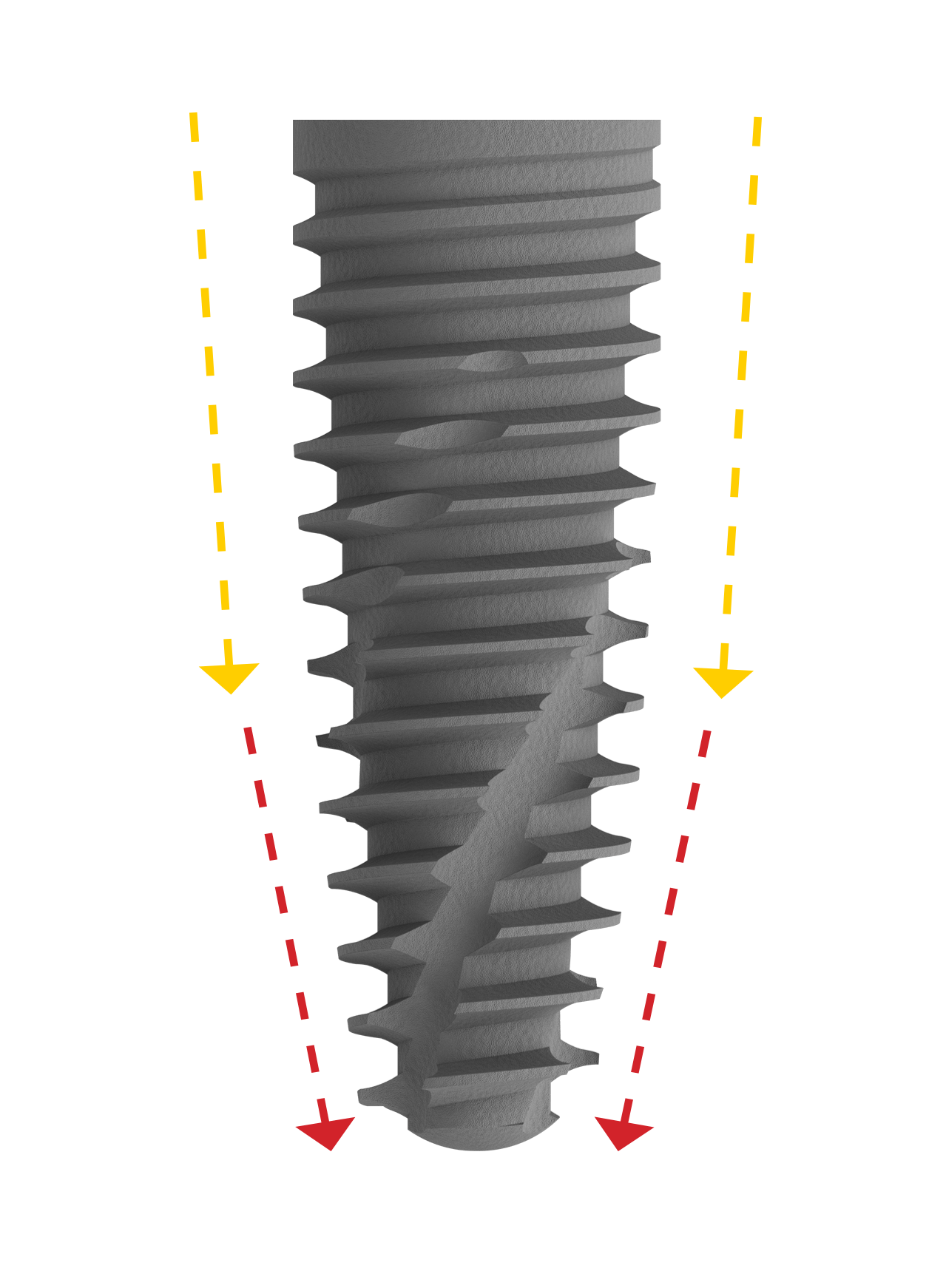

Tapered morphology and V-thread design
High Primary Stability.
Thanks to the P-3 Inserta’s unique tapered morphology and self-tapping design, higher initial stability can be attained in any compromised bone situation and post extractive sites
Self Tapping Force Resistance.
This design enables bone condensing, maximized compressive force resistance, and minimized shear force production. Thanks to Inserta’s P3 unique tapered morphology it generates less heat and increases primary stability and BIC

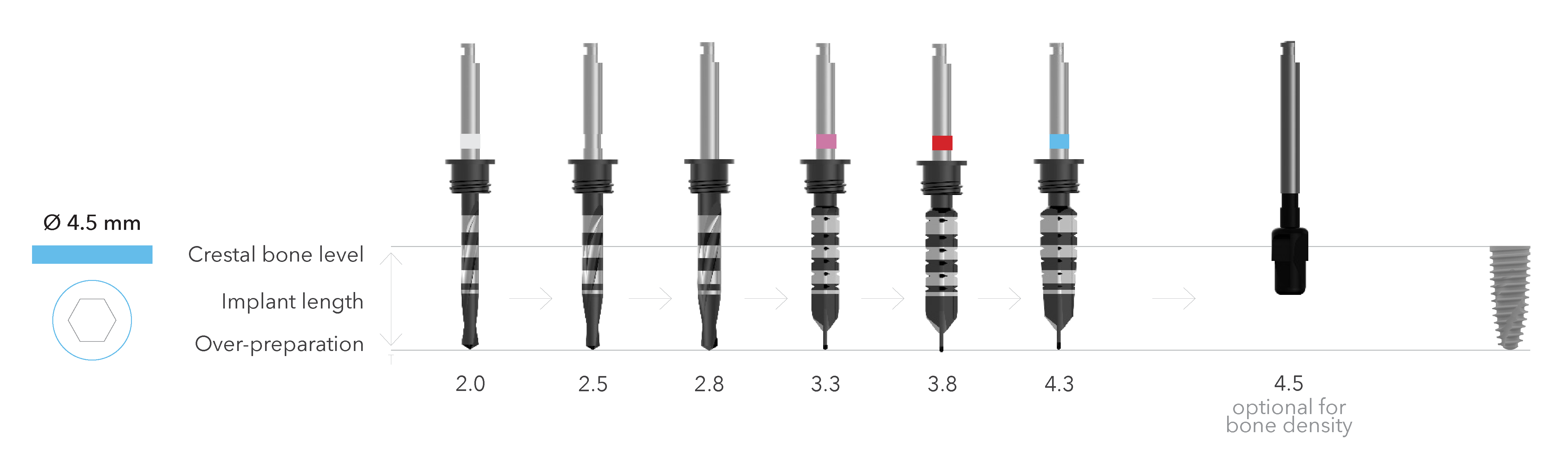

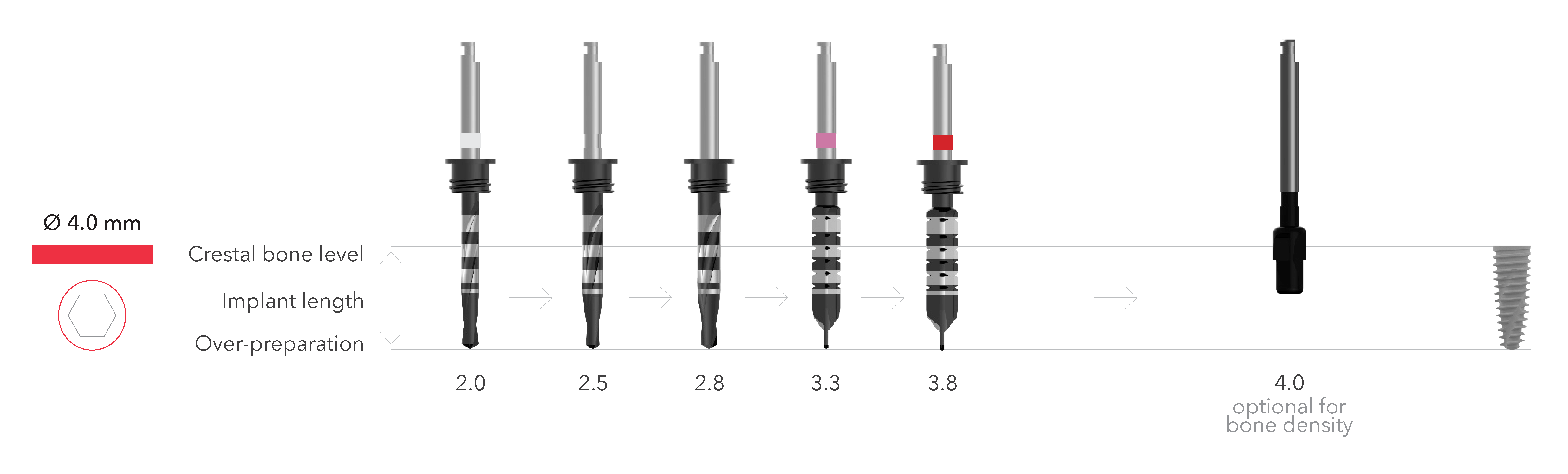

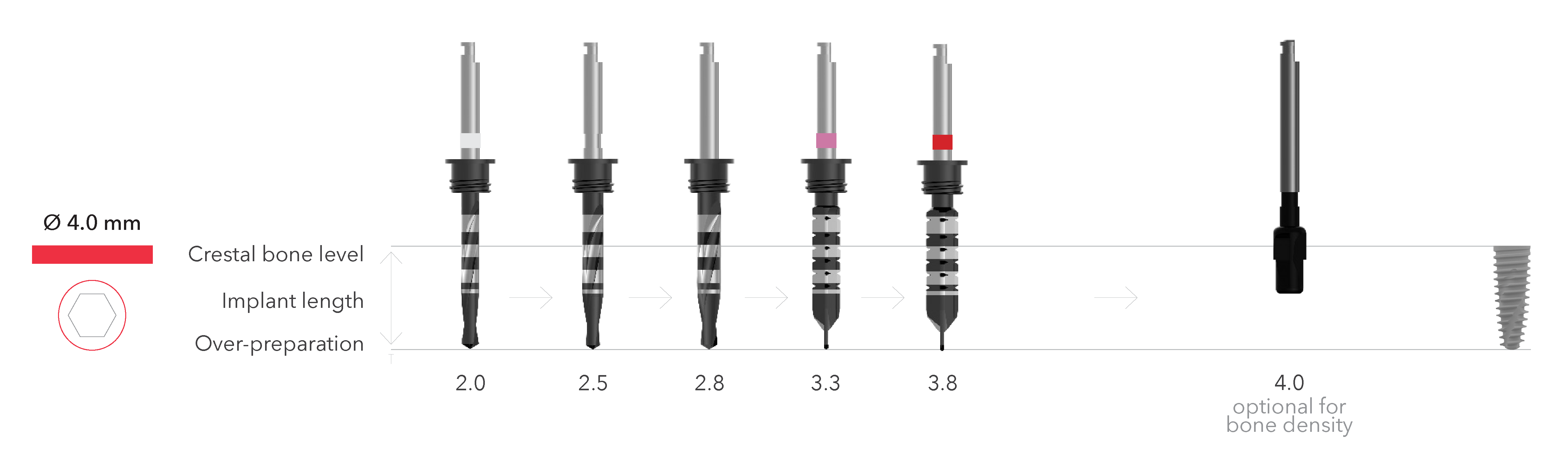

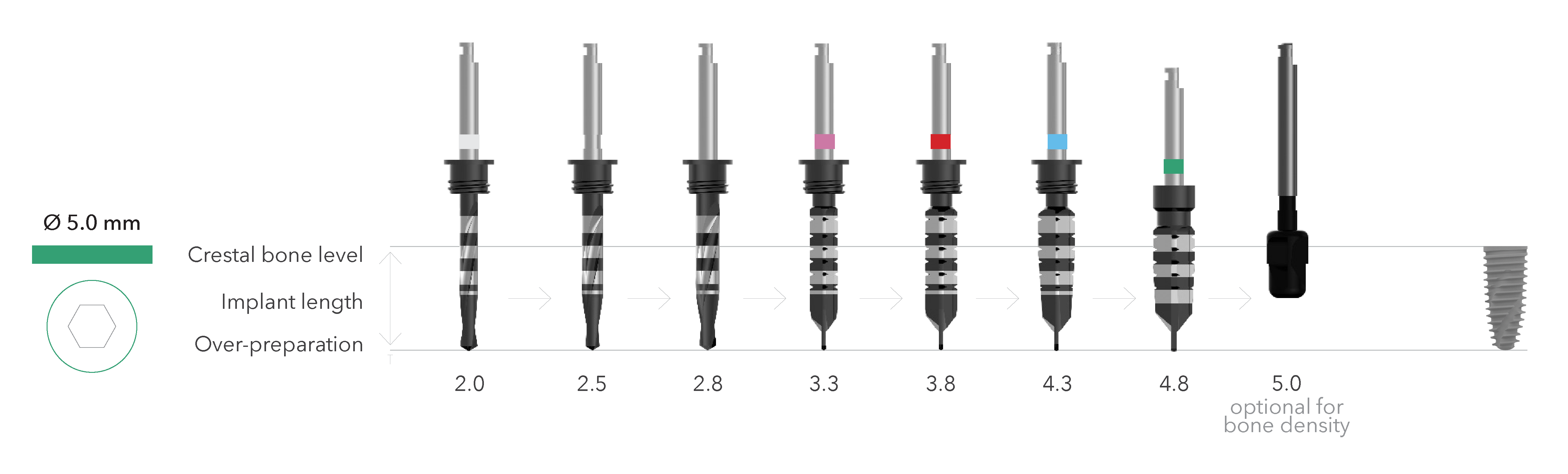

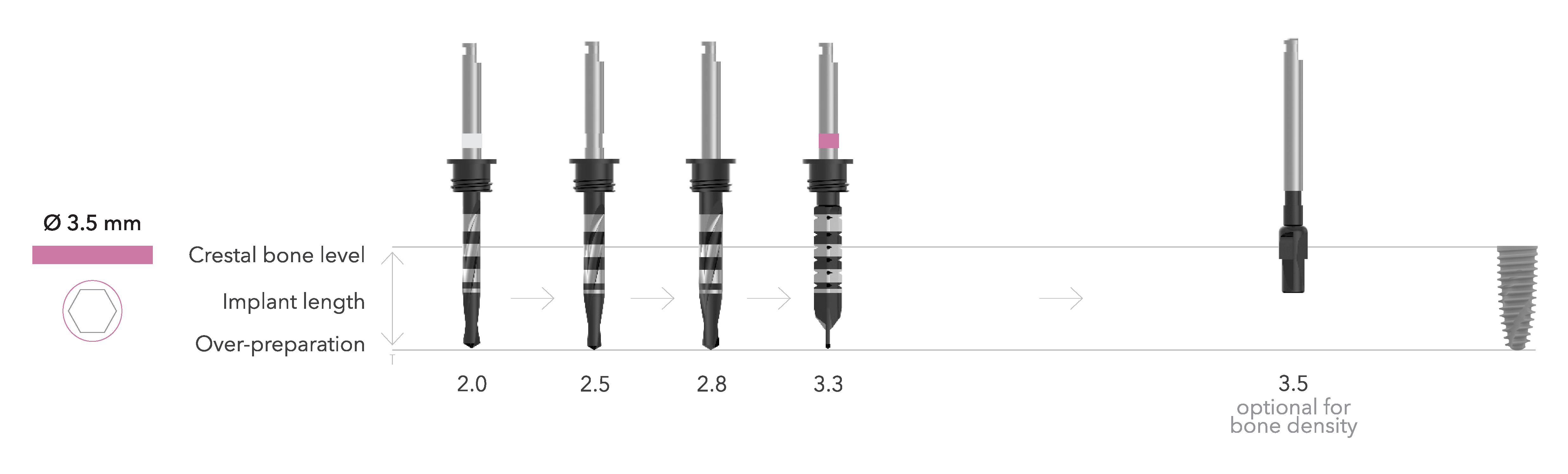

Double Blade Drill Surgical Sequence

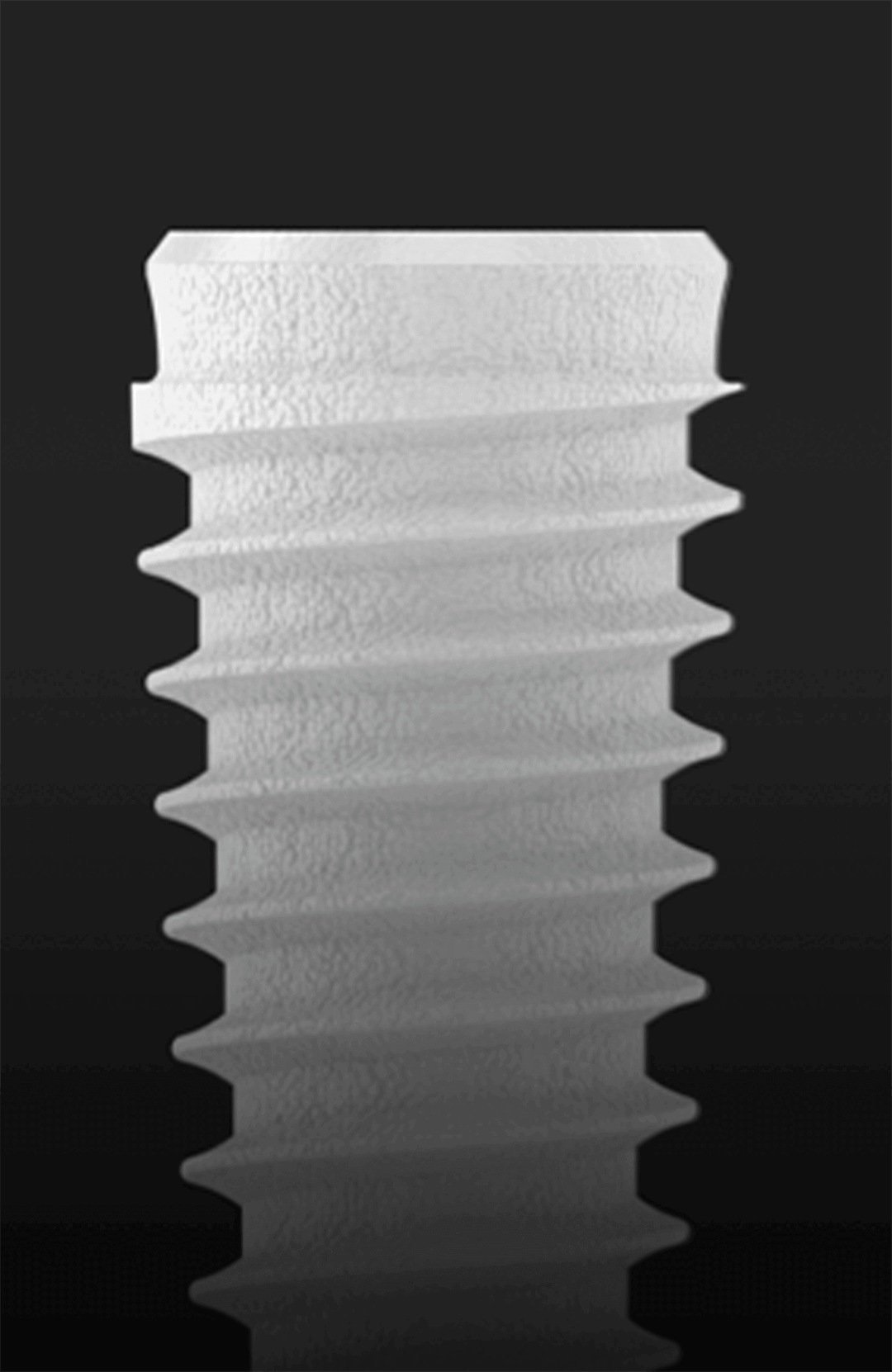

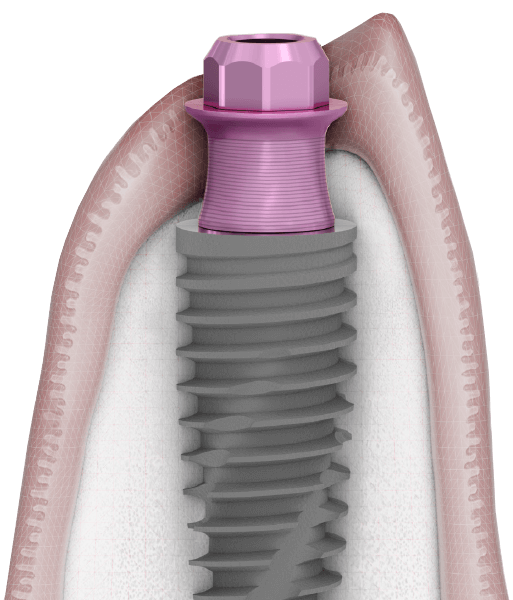

Get to know Inserta P-3

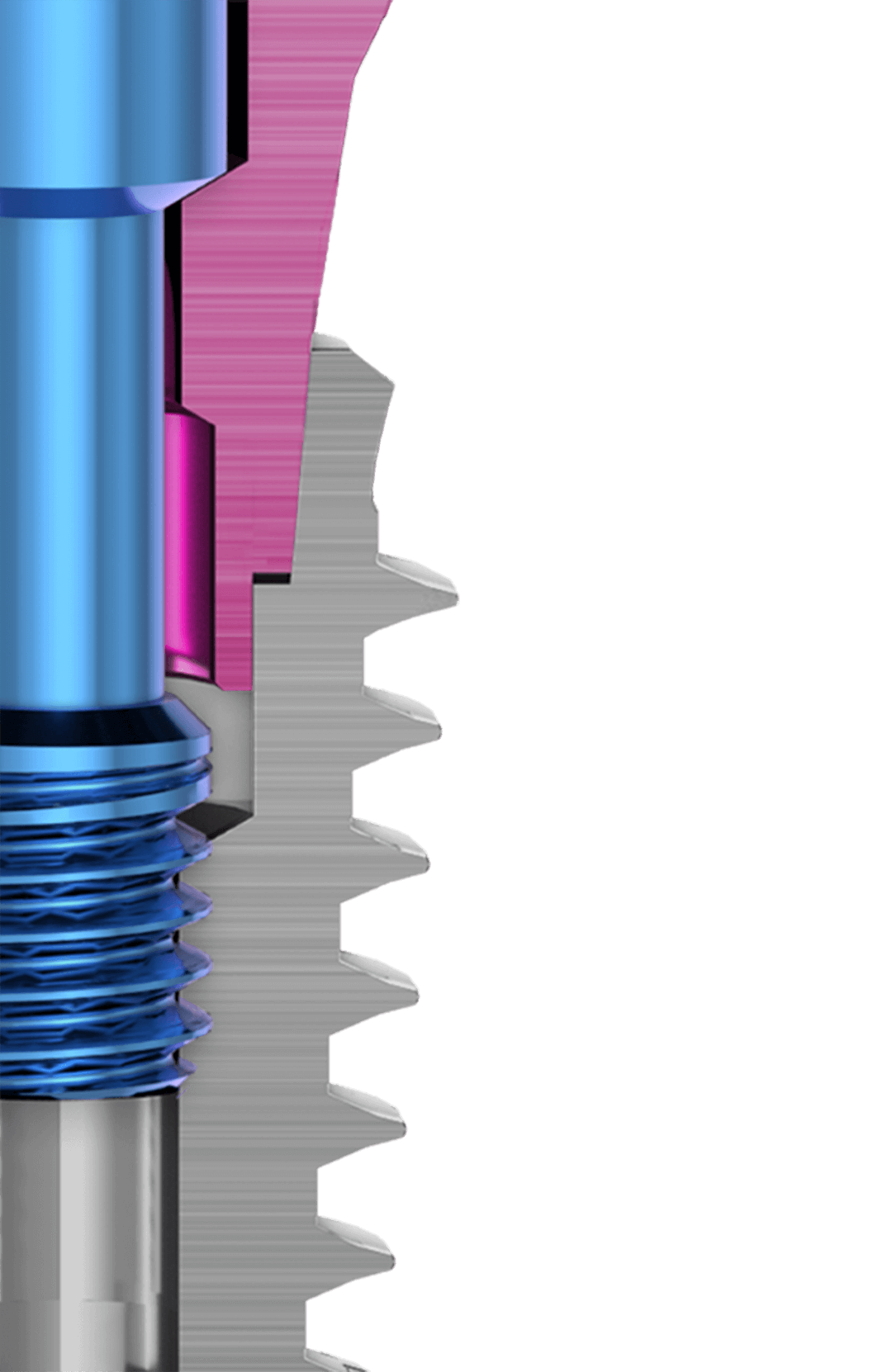

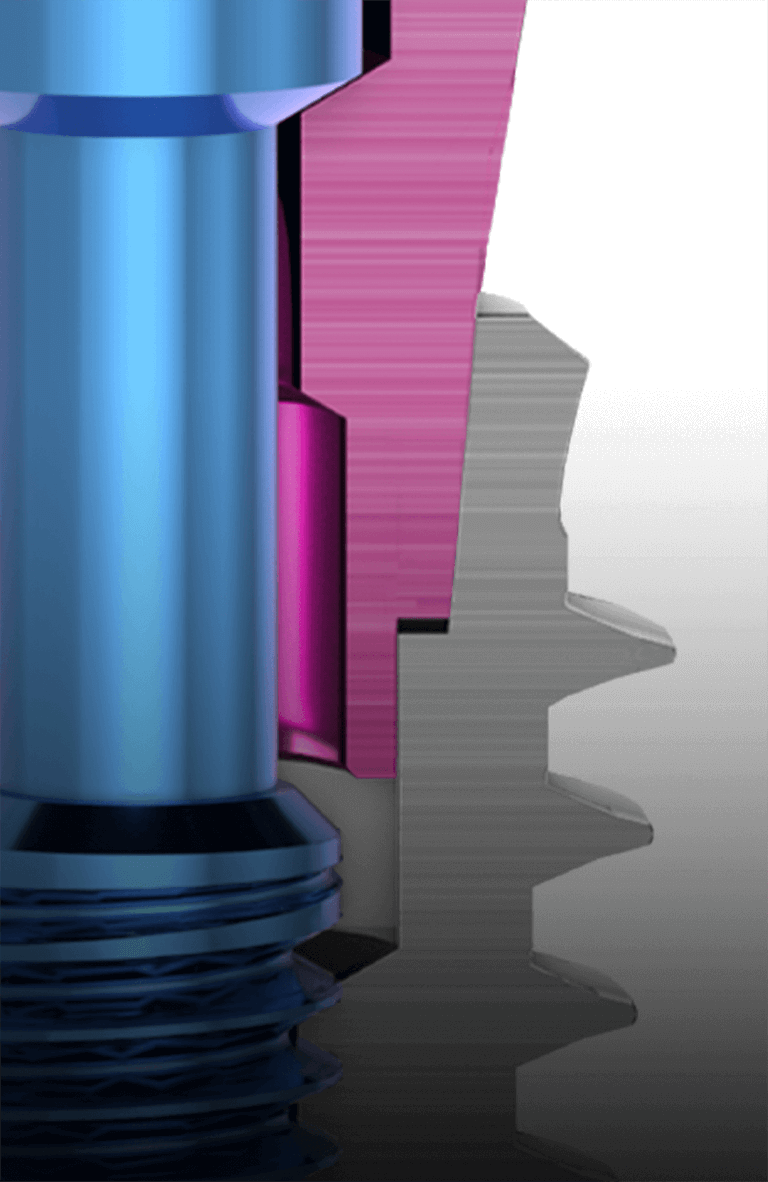

5 degrees conical connection
Tight, Strong & Stable Seal 5° Conical Connection.
Inserta P-3’s five degrees Conical connection design provides a tight, strong and stable fit between implant and abument, reduces peak stresses and thereby preserves the marginal bone. The interior of the implant is sealed off from surrounding tissue, minimising micromovements and microleakage.

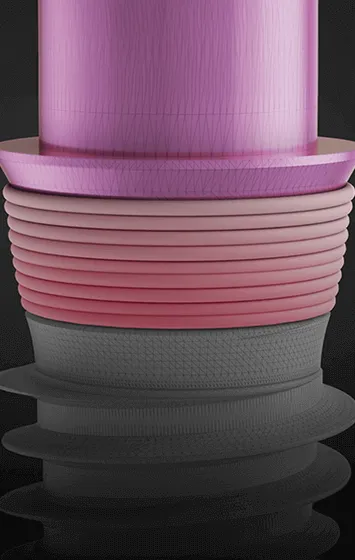

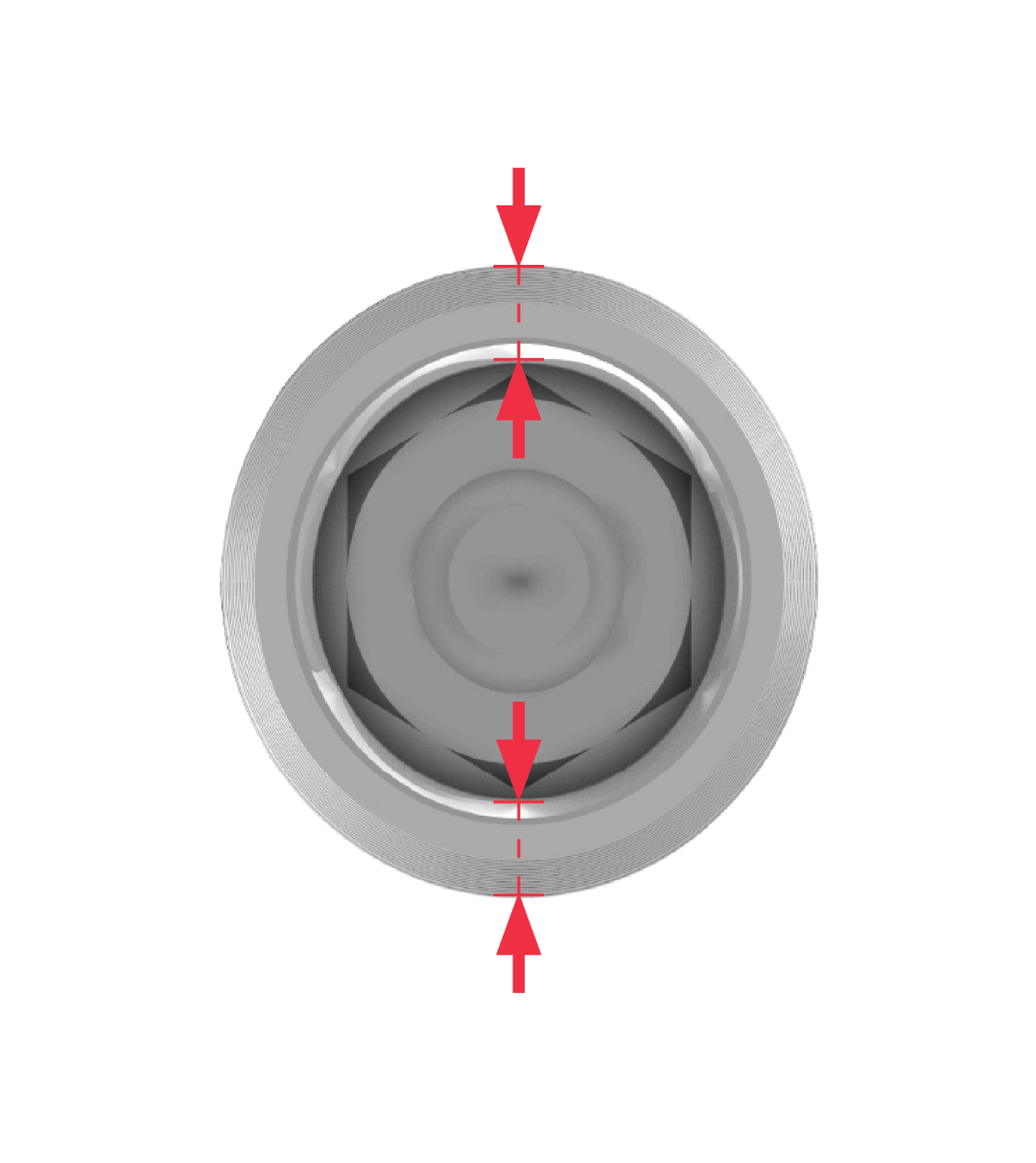

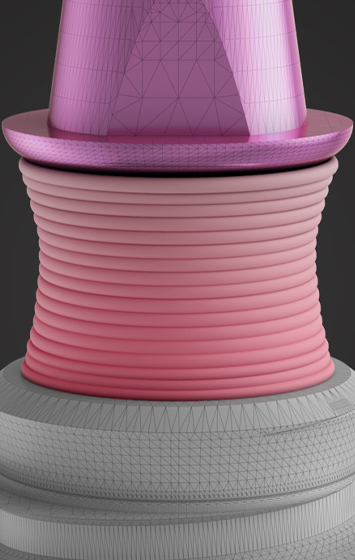

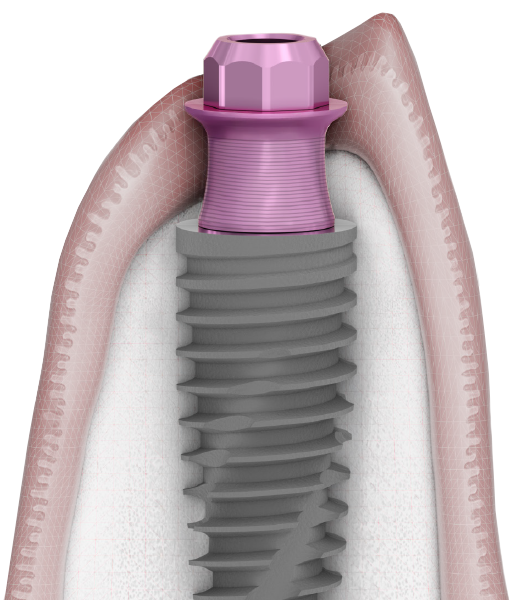

Integrated platform switching
Integrated platform switching
Crestal Bone Stability Maximum Aesthetics.
P-3 Platform Switching design allows for an increased connective soft tissue contact zone both in height and volume. This integrates with the transmucosal part of the implant, with the effect of sealing off and protecting the marginal bone whilst boosting aesthetics end result as well as longevity

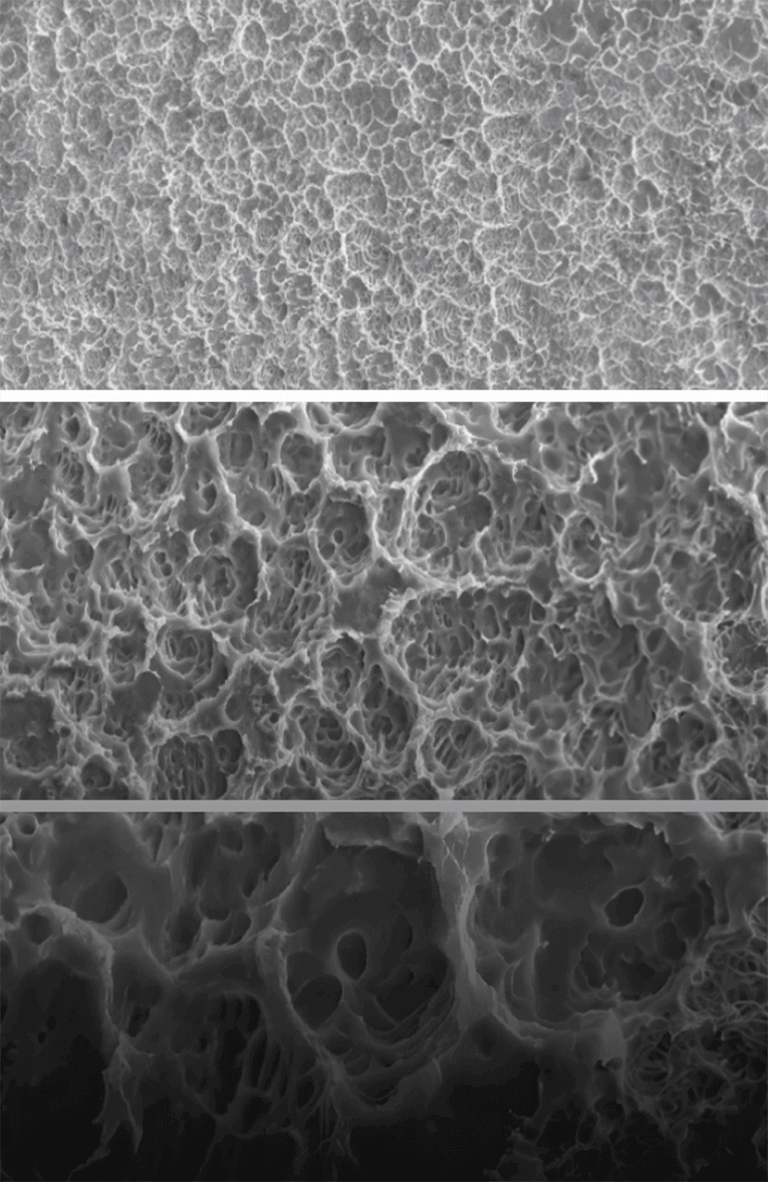

Activa+® Surface
Activa+® by Inserta is a high-performance SLA surface boasting extensive healing capabilities.
This individually sandblasted, large grit, acid-etched surface creates an optimal surface roughness (1-2 SA) boosting enhanced osseointegration through greater bone-to-implant contact (BIC).
Introduced in 2003, Activa+® employs a large-grit sandblasting technique followed by acid-etching to create a unique topography ideal for cell attachment. Geometry and surface topography are the two key factors that determine the success of osseointegration in dental implants.
Activa+® SLA surface treatment has been shown to increase the success and survival rates of dental implants and reduce healing time after surgery.

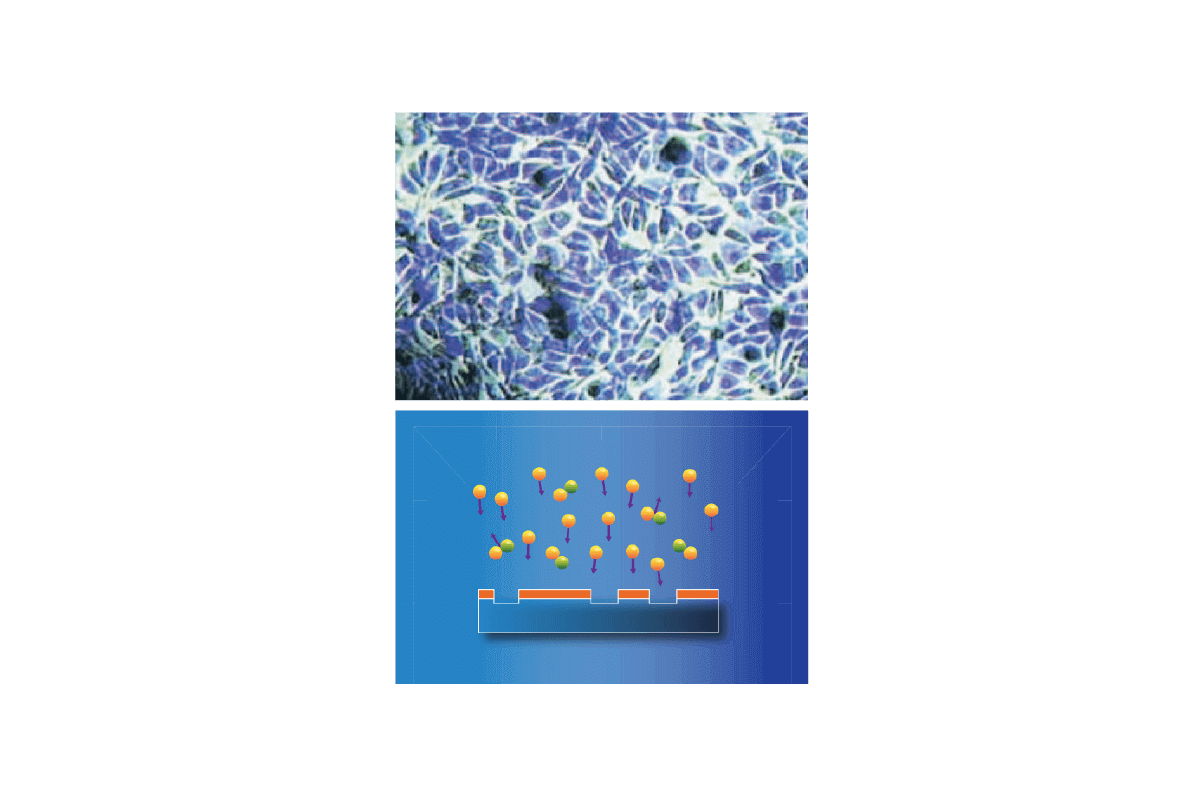

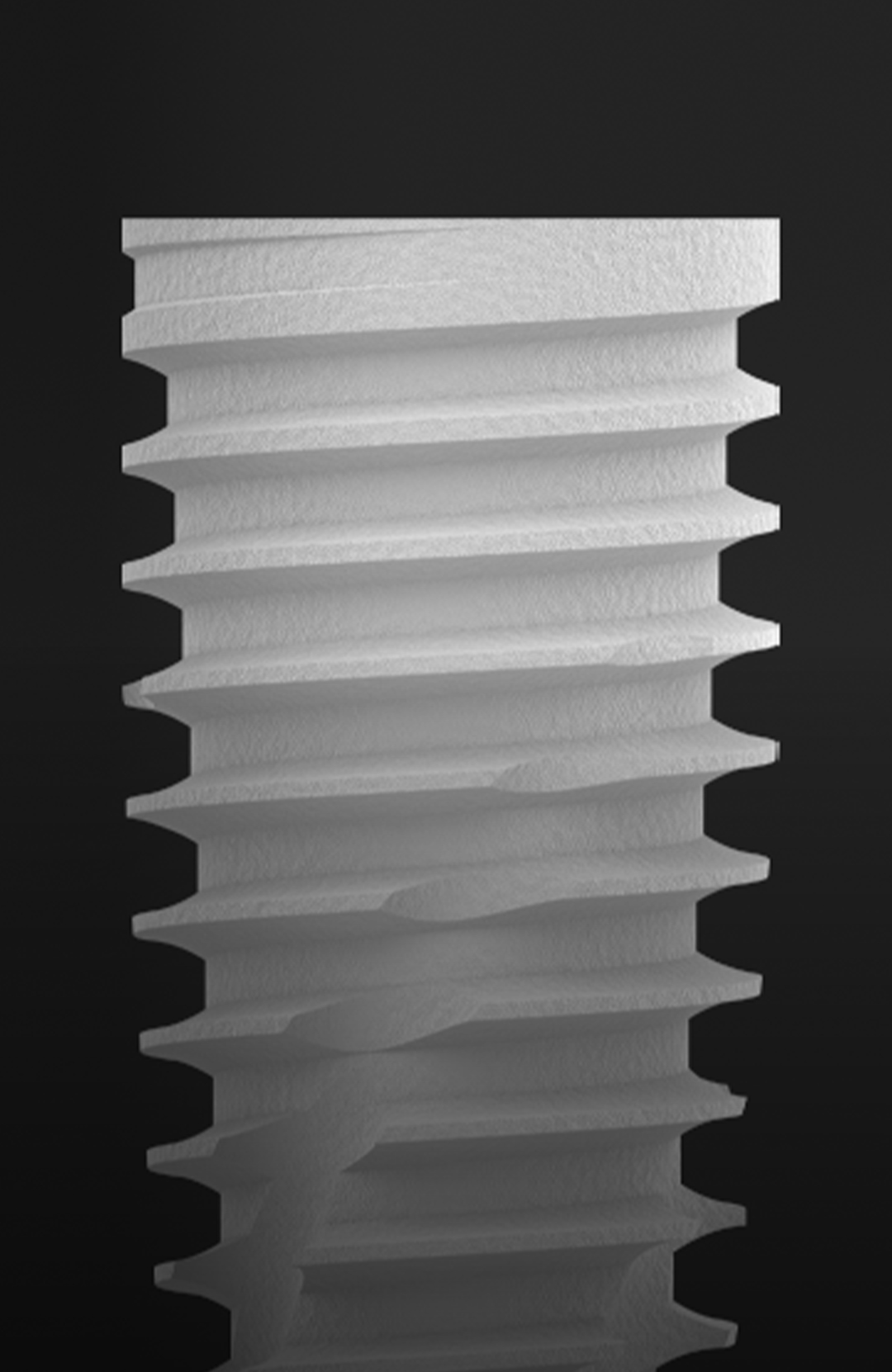

Enhancing Performance with Oxygen AND Argon Cold Plasma Surface Treatment
Plasma decontamination
Plasma surface treatment.
It has proven its effectiveness in microscopically removing contamination and enhancing wettability, leading to a way stronger and faster osseointegration.
By improving the chemical and physical interaction between dental implants and tissues, plasma technology plays a crucial role in promoting their long-term success. Utilizing a gas mixture of argon and oxygen, plasma surface treatment efficiently removes organic contamination and boosts the surface energy of dental implants. This approach may reduce loading time and improve overall success rates, particularly in patients with known complications such as diabetes, osteoporosis, and heavy smoking habits.
Superior Graft Integration, Enhanced Osteoinduction, Higher Osteoconduction

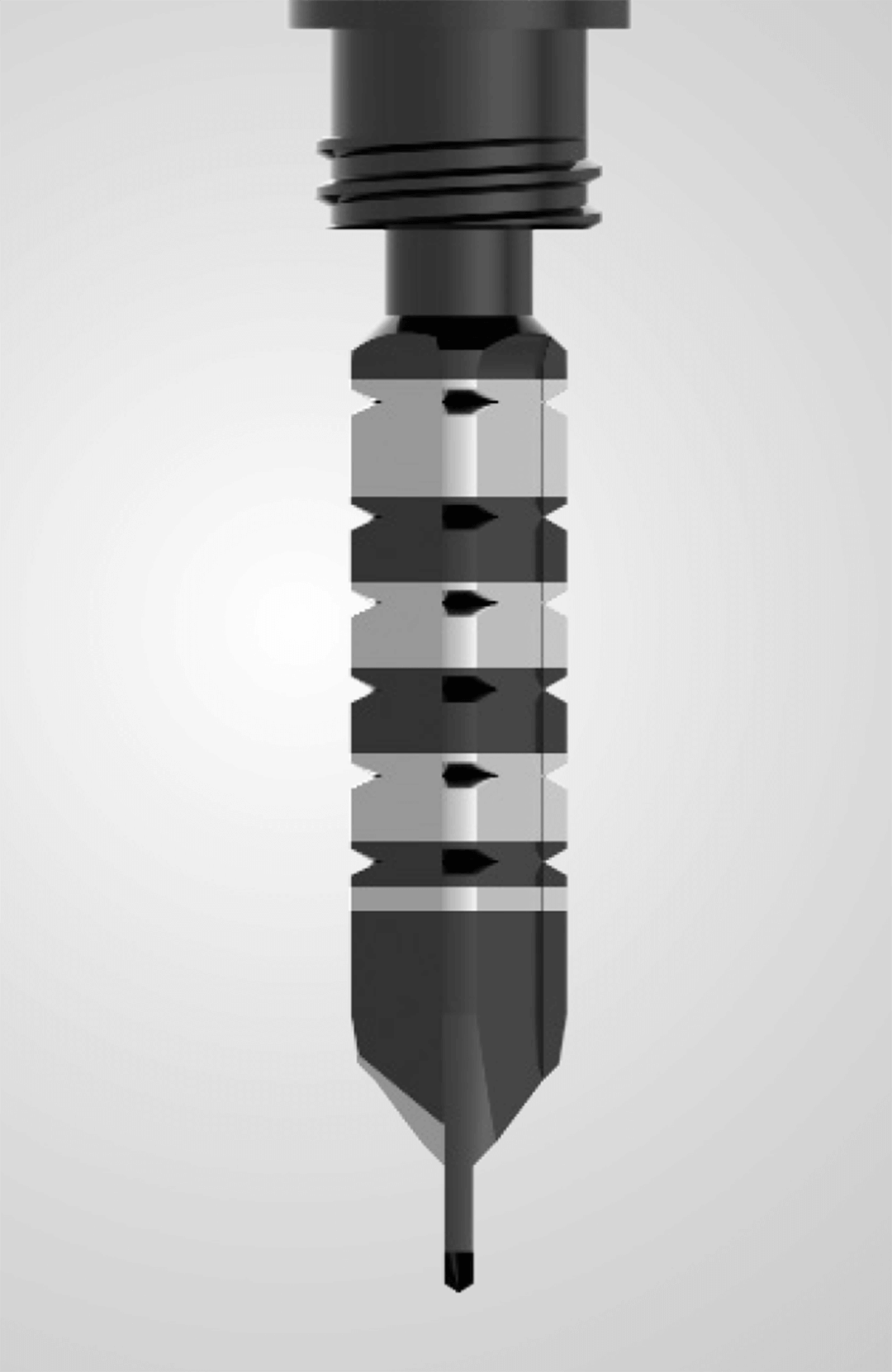

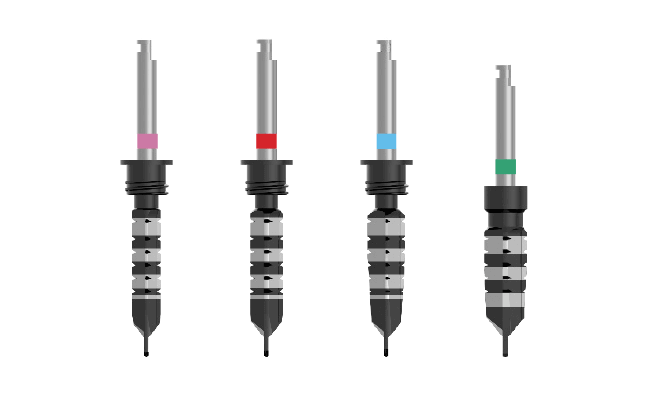

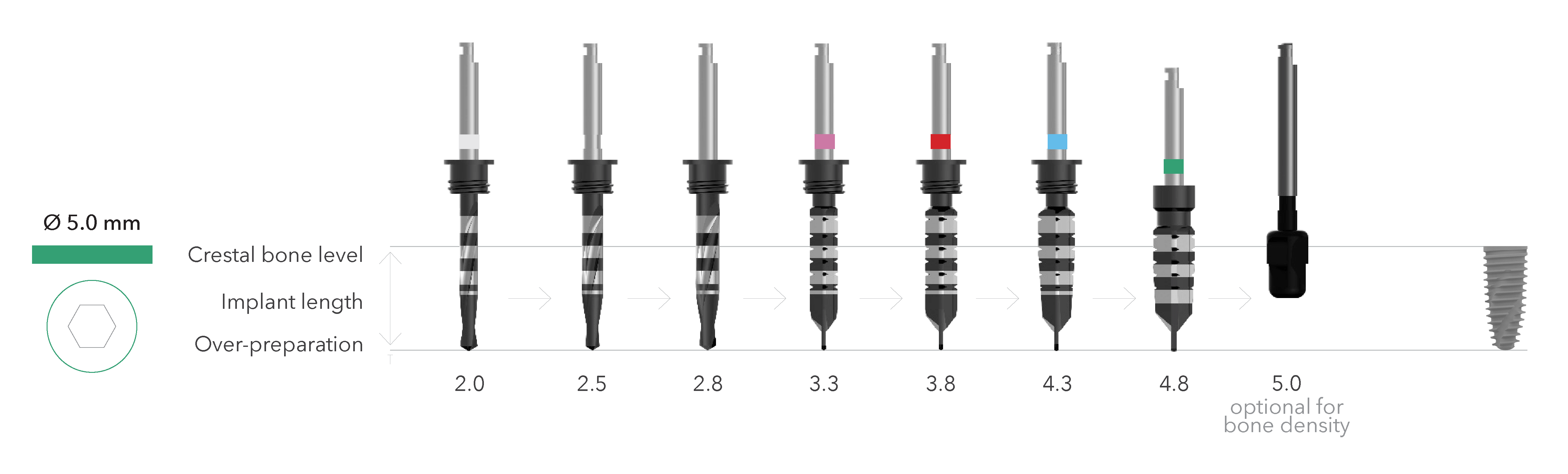

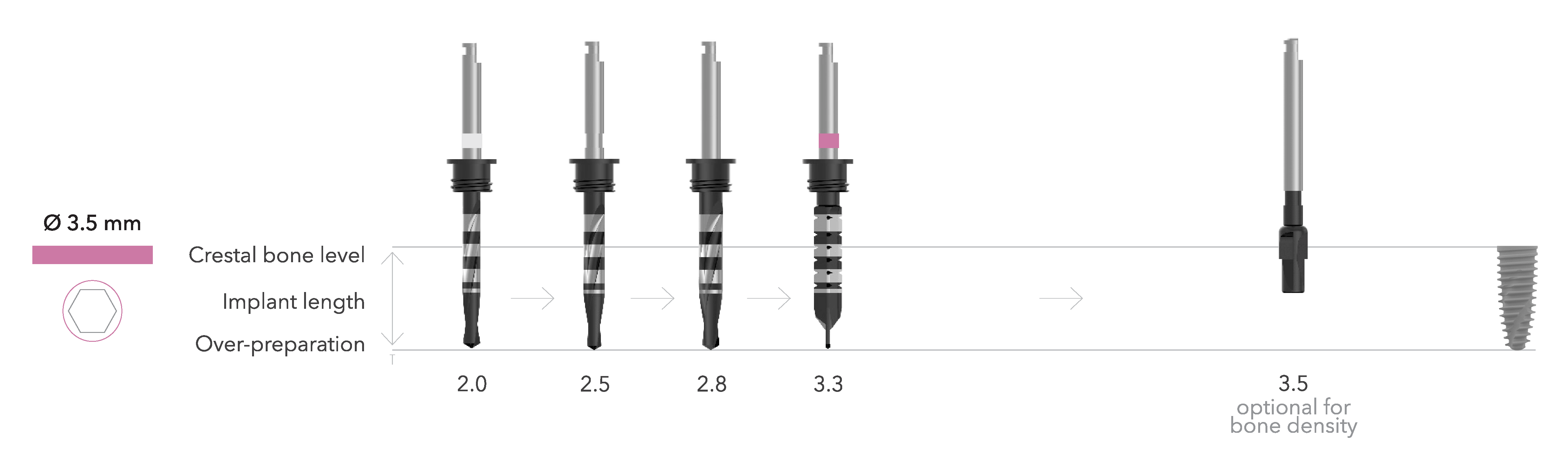

Double Blade Drills Design
Double Blade Drills. Not only has Inserta’s double blade drills design been designed to sharply cut through any type of bone harvesting it, but also to support osseodensification (OD) procedures when used in reverse (anti-clockwise direction). This is based on the idea of preserving bone during the osteotomy preparation in order to expand the implant site as well as increase the stability of the implant in the jaw bone. Maintaining sufficient peri-implant bone density (BV%) is essential to achieve the optimal bone-to-implant contact(BIC) for obtaining a biomechanically stable implant.

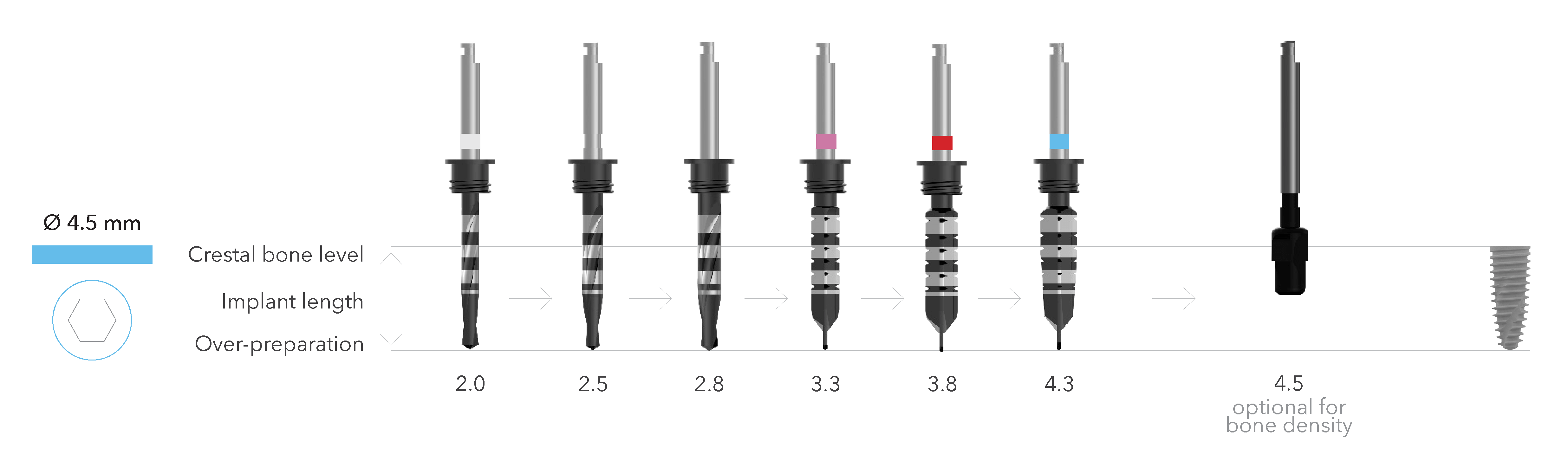

Slow drilling protocol. Such a protocol allows for bone to be harvested that has the correct trabecular structure and is rich in signalling molecules. The recipient site has a transport network, the extracellular matrix. This is able to facilitate their movement, allowing for faster and more successful graft integration. The bone that can be harvested is the gold standard for these osteoconductive and osteoinductive reasons.

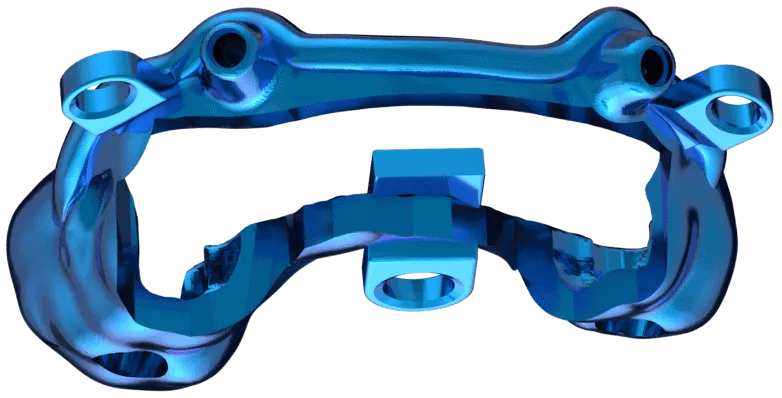

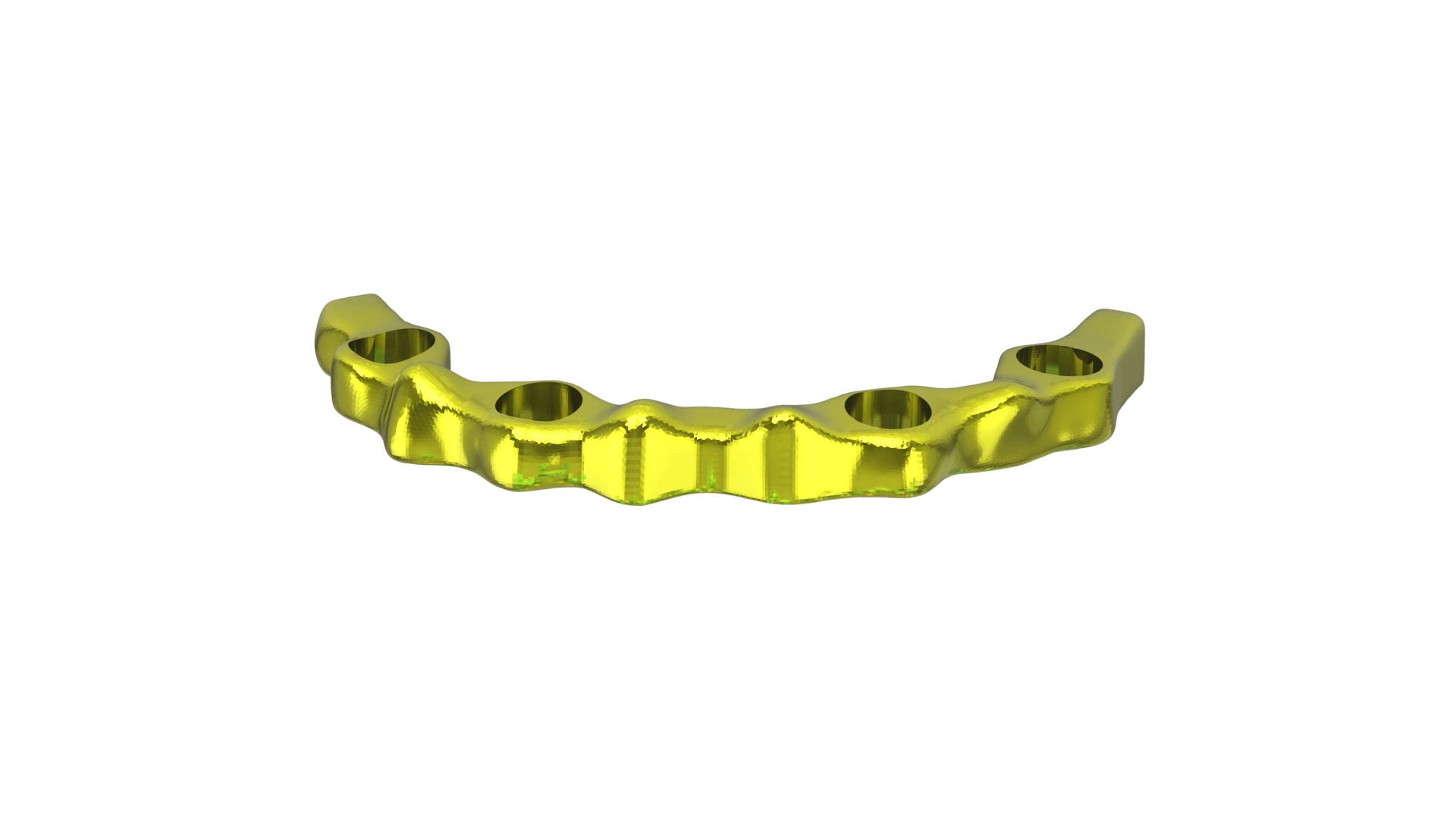

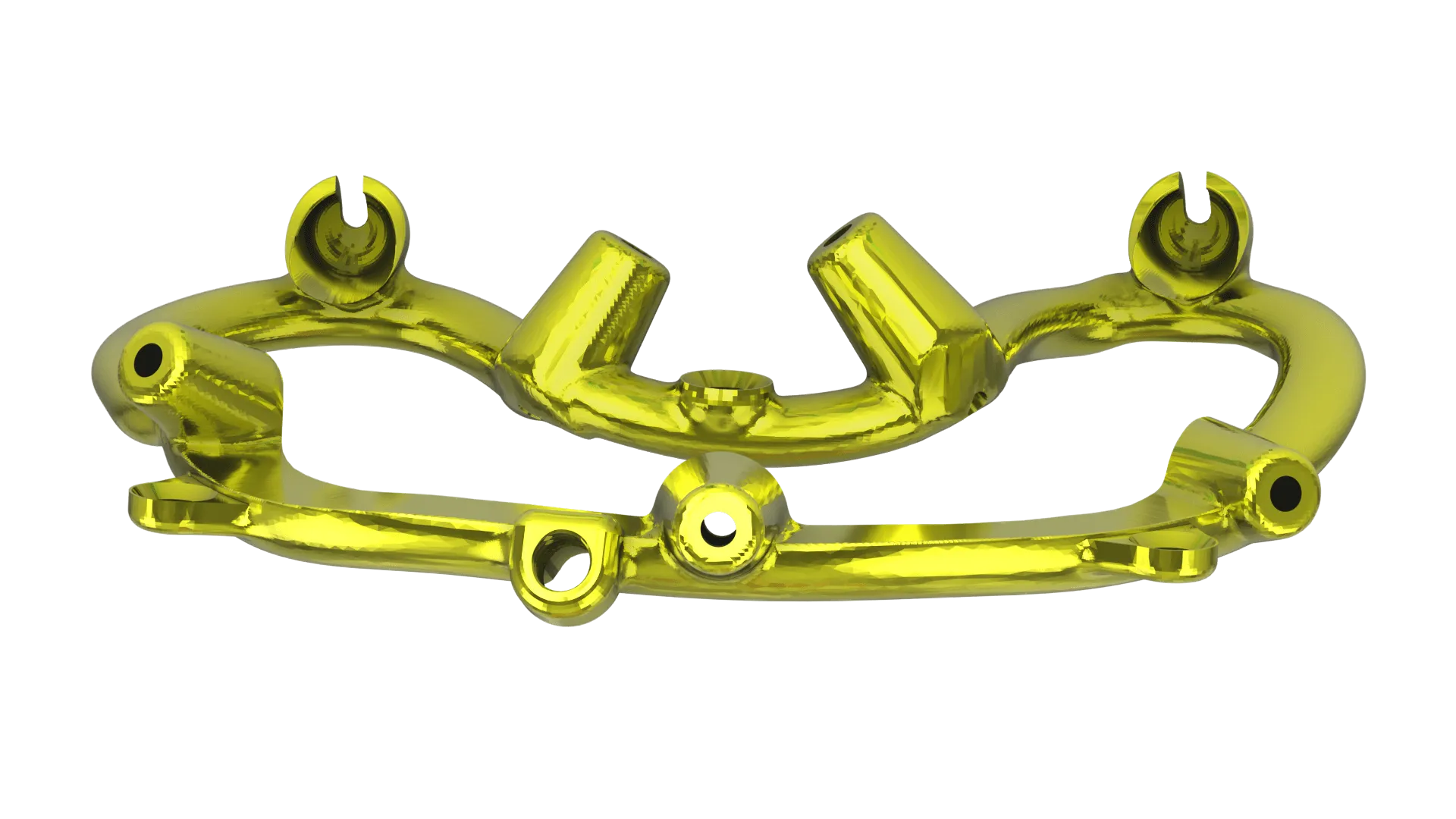

Find the full arch solution you have been looking for

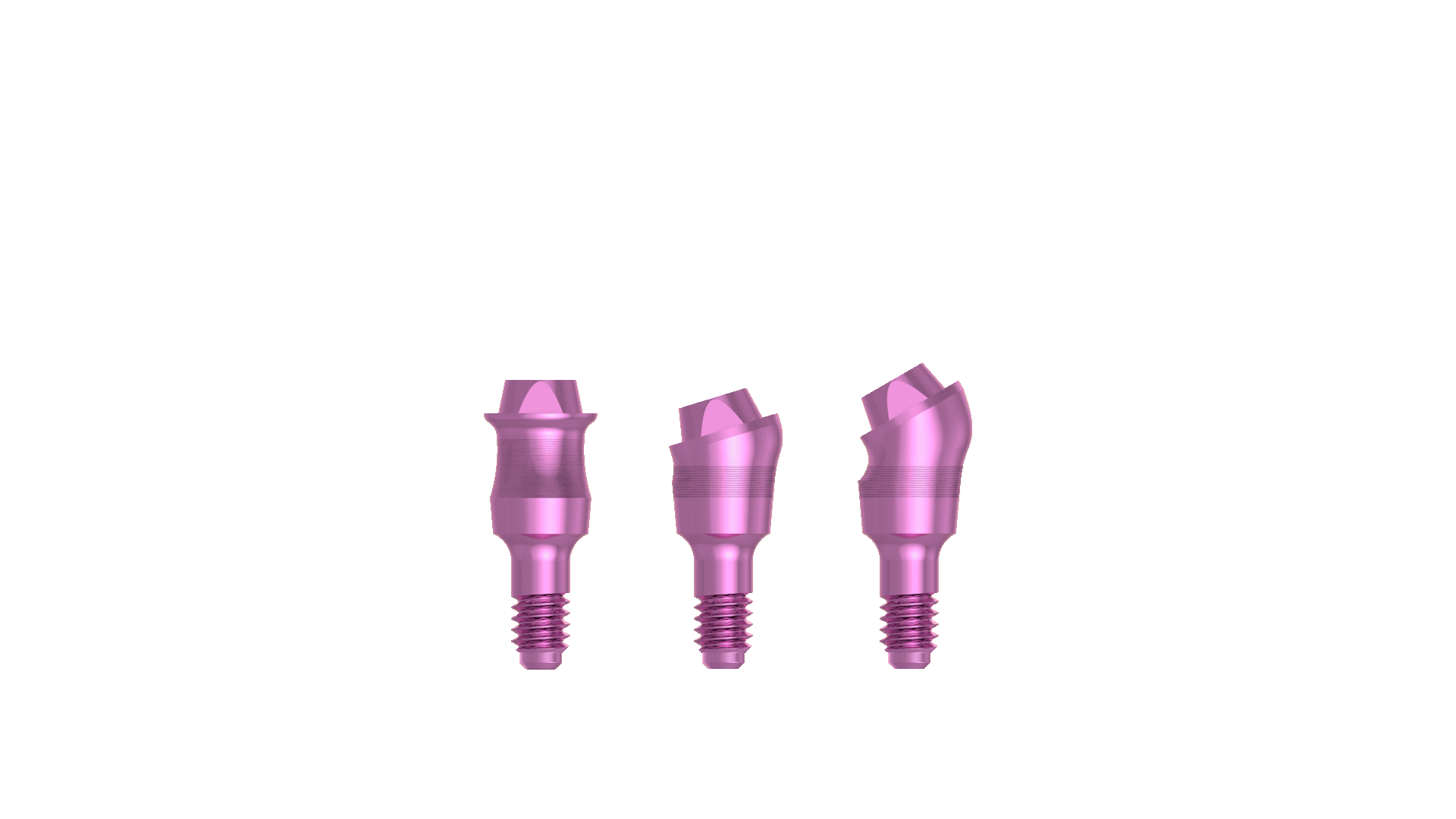

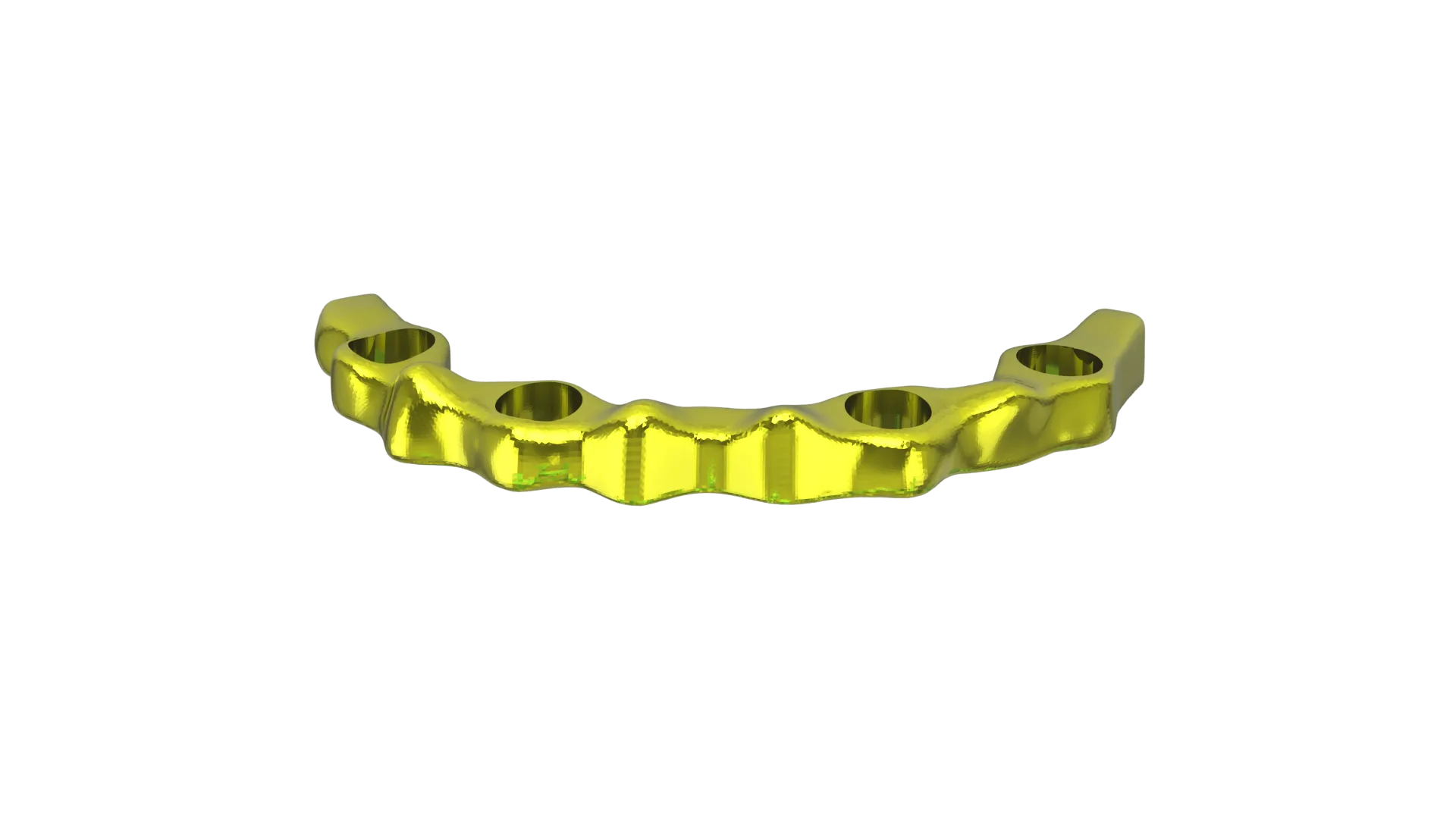

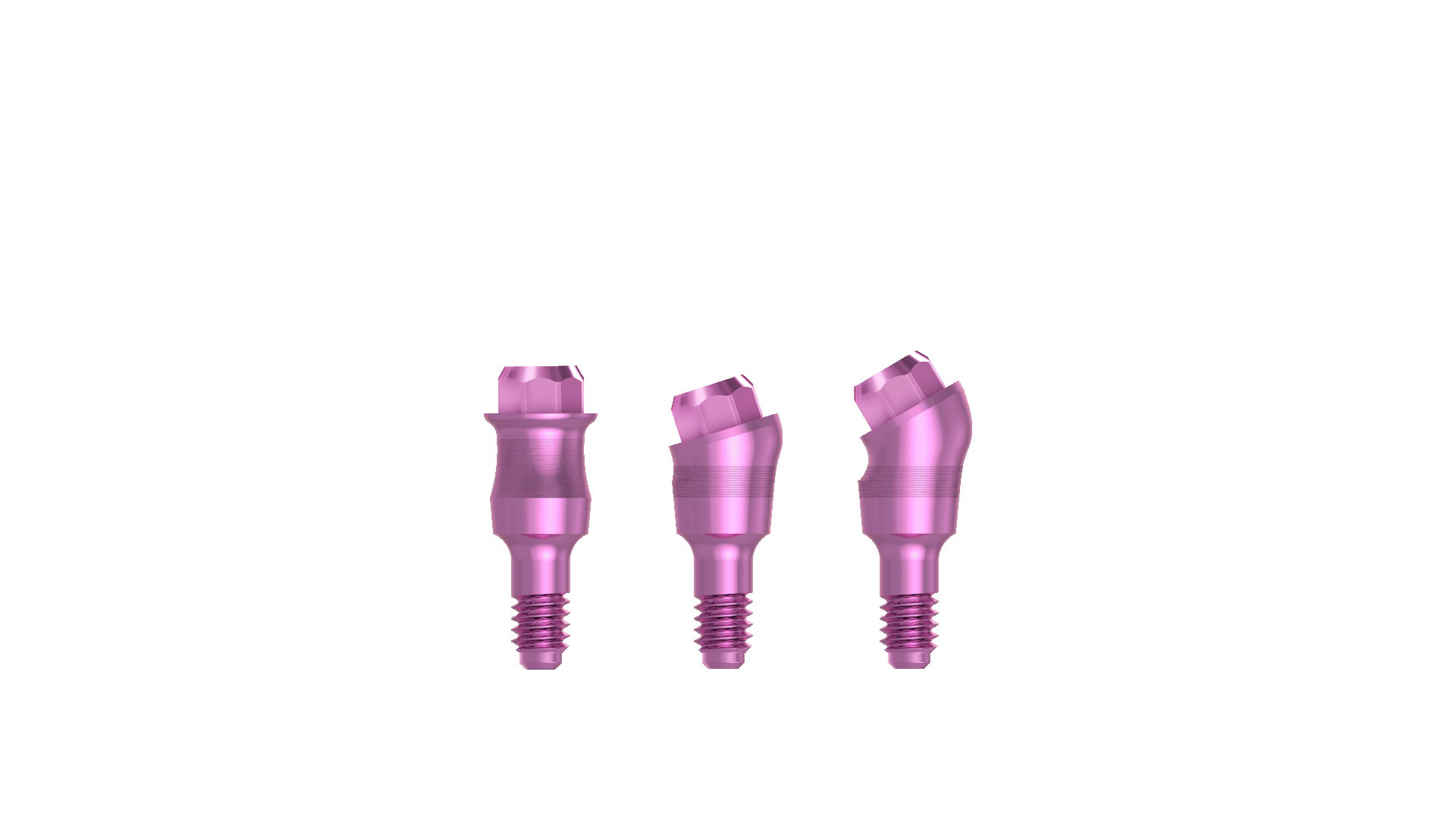

Slim MUA profile & photogrammetry
Find the full arch solution you have been looking for
Find the full arch solution you have been looking for

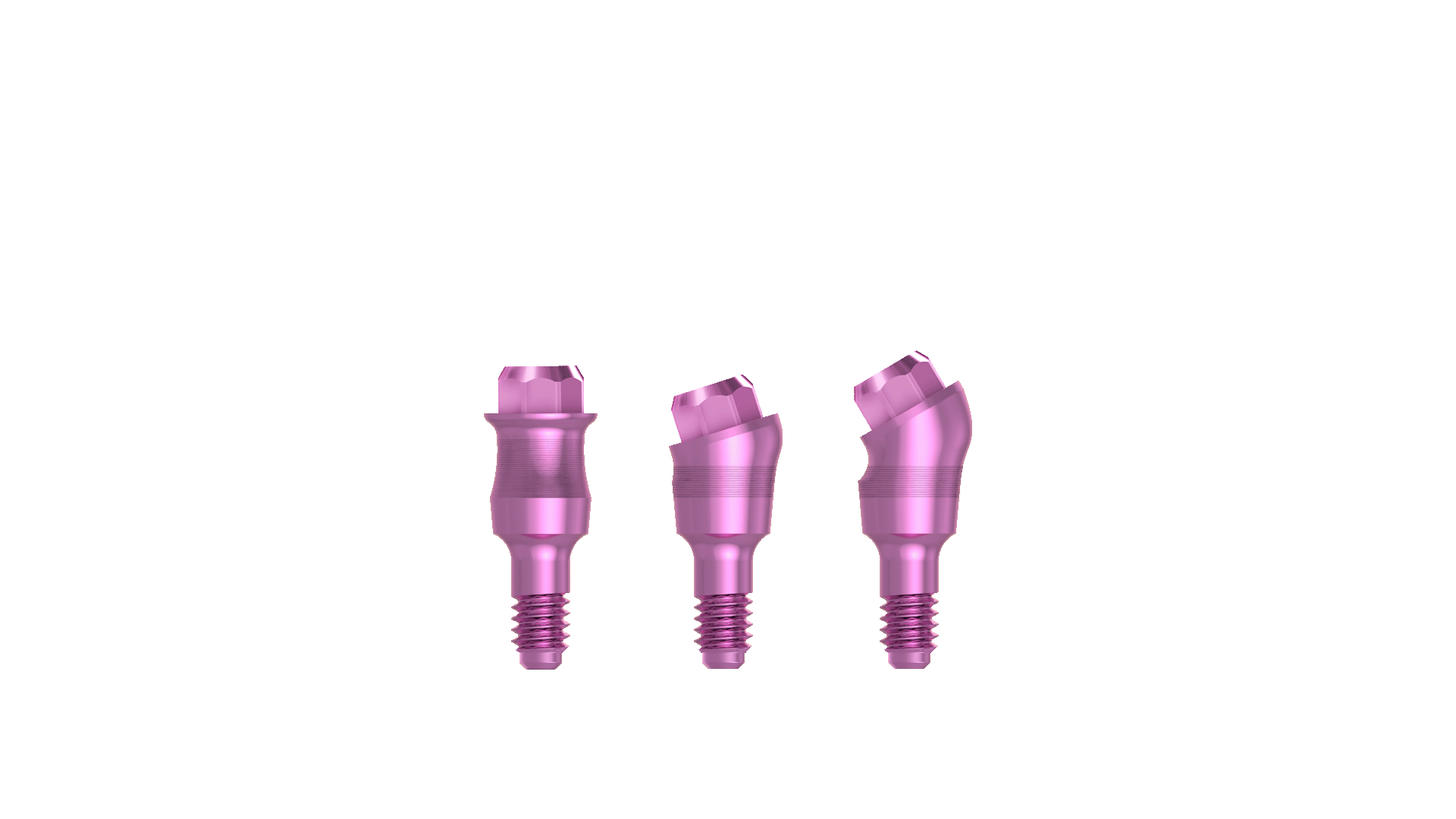

Slim MUA profile & photogrammetry
Designed for implant dentists
Tailored Solutions for Implant Dentistry Professionals
Designed for implant dentists
P-3 essentials
Free Hand
Surgical Kit

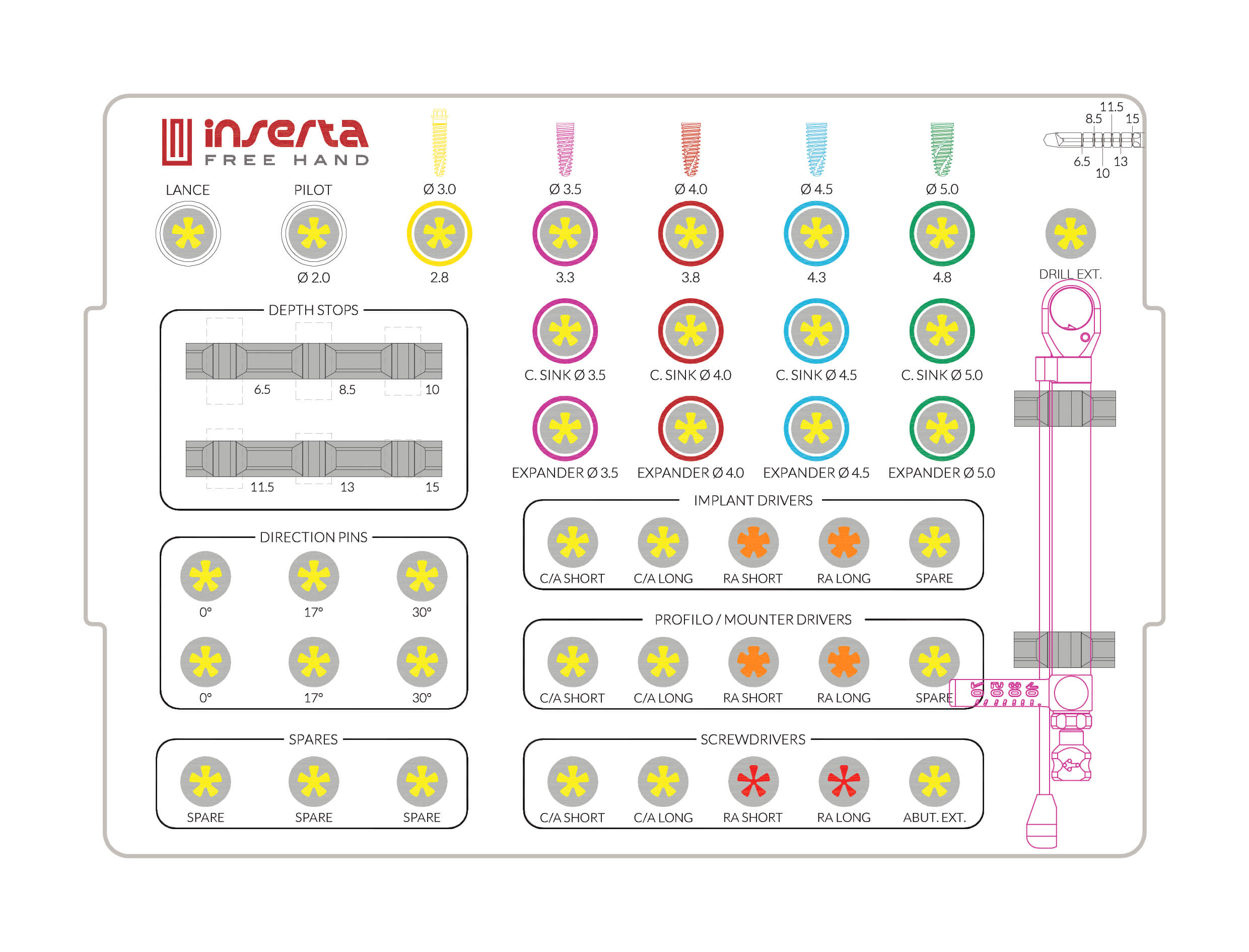

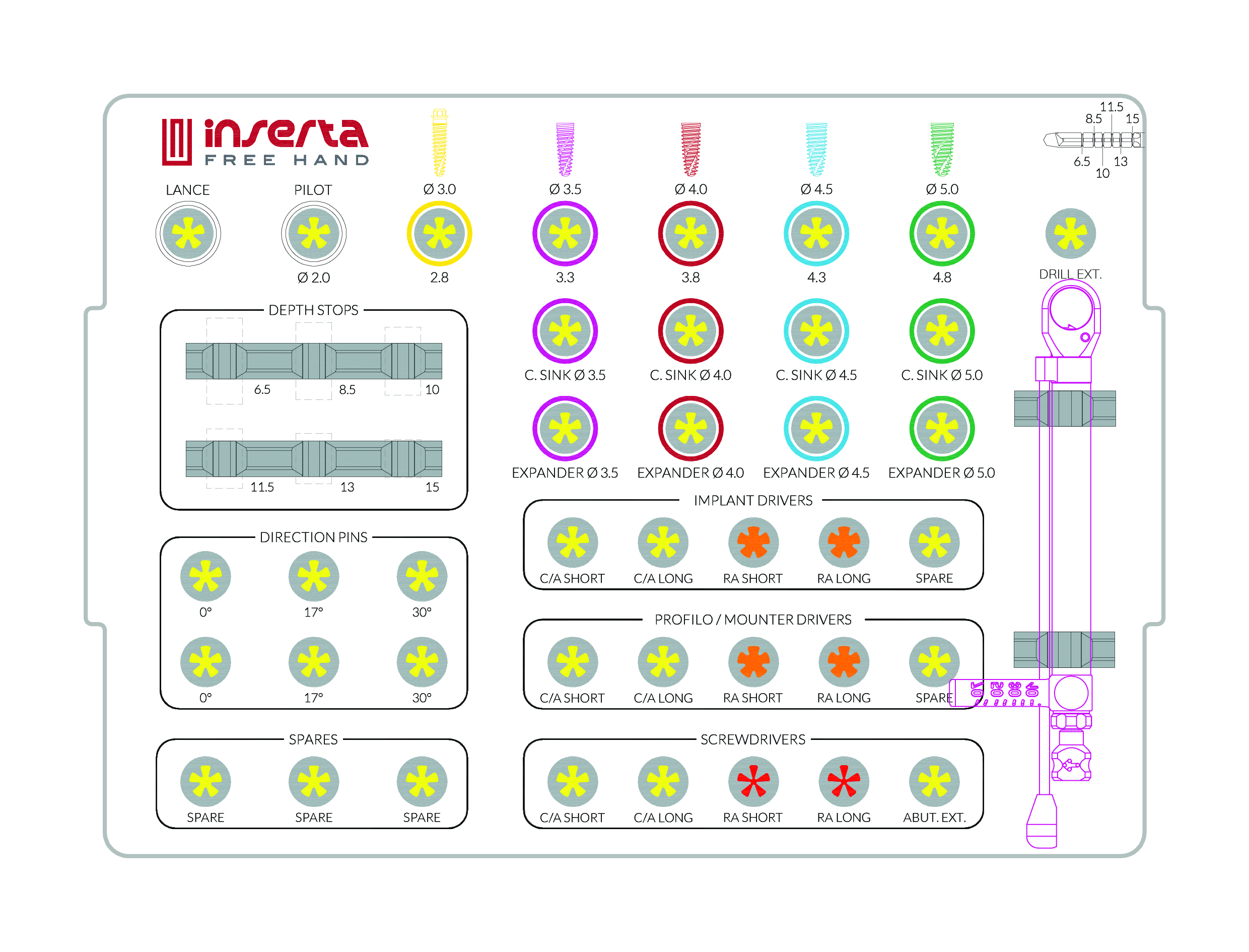

Free Hand Surgical Kit

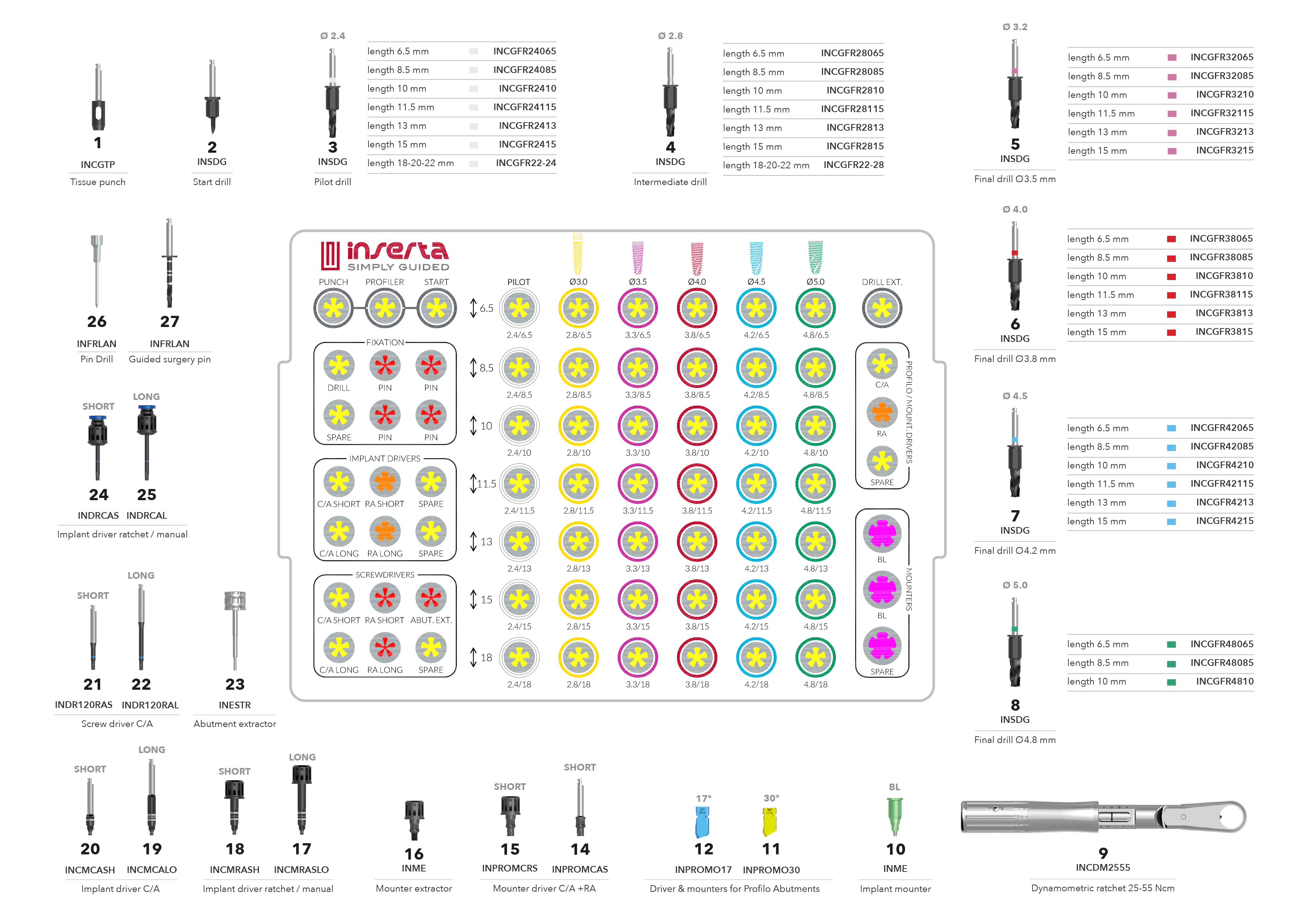

Simply Guided
Surgical Kit

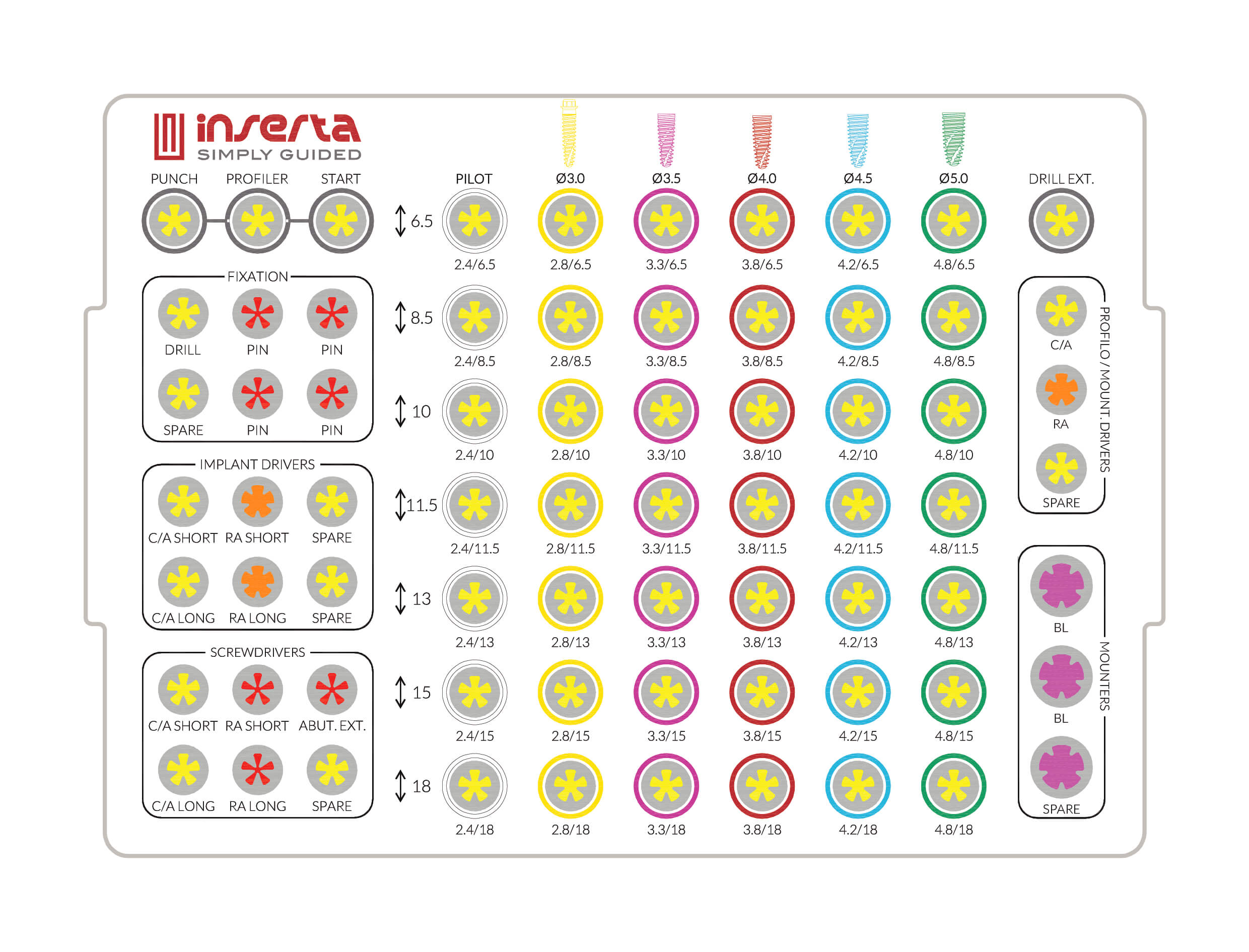

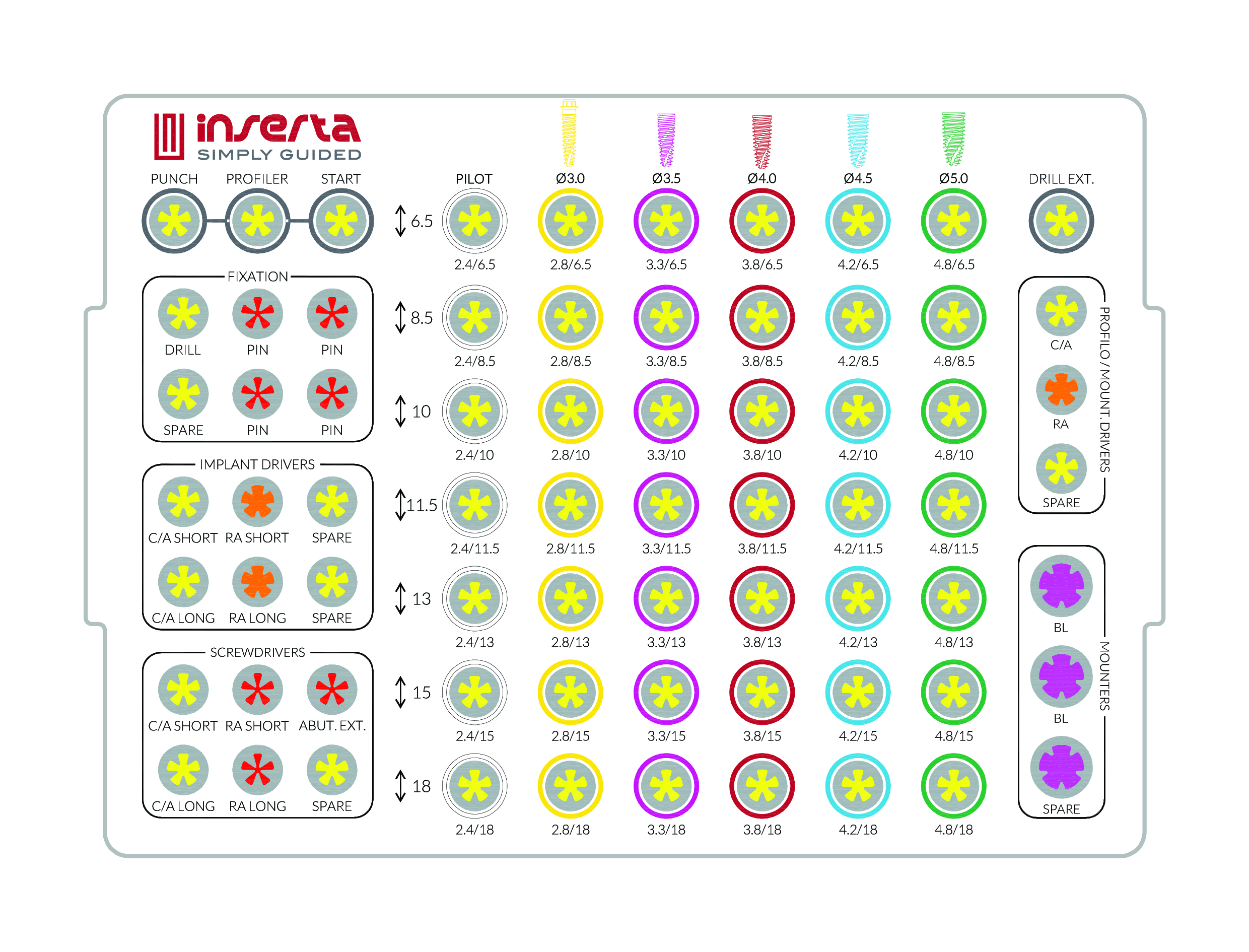

Simply Guided Surgical Kit
